High-Precision Gas Tank End Stamping Parts for Durable Automotive Fuel Tank Assemblies

Gas tank end stamping parts are essential structural components in automotive fuel tank assemblies. They form and seal the two ends of a cylindrical or specially shaped fuel tank body, helping the tank maintain dimensional stability, tightness, pressure resistance, and long-term reliability under demanding vehicle operating conditions. Although these parts may appear simple at first glance, their performance depends on accurate material selection, advanced stamping die design, controlled forming processes, stable production equipment, and strict inspection standards.

For automotive manufacturers, fuel tank producers, component integrators, and maintenance solution providers, the quality of gas tank end stamping parts directly affects product safety, assembly efficiency, service life, and downstream production cost. A poorly formed tank end can lead to assembly gaps, weld instability, fuel leakage risk, deformation under pressure, inconsistent fit with valves or accessories, and premature corrosion. A high-quality stamped tank end, on the other hand, provides consistent geometry, smooth surfaces, uniform wall thickness, clean edges, excellent strength, and reliable sealing performance.

This article focuses on gas tank end stamping parts manufactured through high-precision stamping processes using cold-rolled steel, aluminum alloy, or other suitable metallic materials. It explains the product’s role, technical advantages, manufacturing process, quality control methods, competitive strengths, and application value. It also highlights the production capabilities of Suzhou Shuangqisi Mold Equipment Co., Ltd., a professional manufacturer integrating stamping die design, stamping part production, and stamping automation solutions.

Gas tank end stamping parts

Product Overview: What Are Gas Tank End Stamping Parts?

Gas tank end stamping parts are formed metal components designed to close the two ends of automotive fuel tanks. In many tank structures, especially cylindrical or semi-cylindrical fuel tank bodies used in passenger cars, commercial vehicles, and certain industrial or special-purpose vehicles, the end pieces must match the tank shell precisely. Their geometry must support stable welding, sealing, pressure resistance, and integration with other components such as filler necks, valves, mounting brackets, sensors, or internal baffles.

The product is generally produced by a stamping process that uses a dedicated die set to transform sheet metal into a specified three-dimensional shape. Depending on the tank design, the process may involve blanking, drawing, forming, trimming, flanging, piercing, restriking, calibration, and surface finishing. Each step must be carefully controlled because fuel tank end components often require both structural strength and sealing accuracy.

Common material options include cold-rolled steel and aluminum alloy. Cold-rolled steel offers good dimensional stability, strength, forming performance, and cost effectiveness. Aluminum alloy provides lightweight performance, corrosion resistance, and suitability for applications where vehicle weight reduction is a design priority. The appropriate material is selected according to fuel type, vehicle platform, corrosion requirements, welding method, production volume, and customer specifications.

The key characteristics of high-quality gas tank end stamping parts include uniform thickness, accurate curvature, smooth surface quality, crack-free forming, controlled springback, consistent flange height, clean trim lines, strong mechanical strength, corrosion resistance, and stable repeatability across batch production. These factors ensure that the stamped tank ends can be assembled efficiently with tank bodies and related accessories while meeting original equipment manufacturer requirements.

Why Gas Tank End Stamping Parts Matter in Fuel Tank Safety

Fuel tank assemblies operate in harsh and variable environments. They are exposed to internal fuel pressure changes, vehicle vibration, road shock, temperature fluctuations, humidity, salt spray, and long-term chemical contact. The end stamping parts must remain stable under these conditions. Any weakness in geometry, thickness, welding contact area, or surface quality can become a potential failure point.

In fuel storage systems, sealing integrity is one of the most important performance requirements. The tank end must cooperate with the tank body to create a reliable enclosure. If the end part does not fit the cylindrical shell accurately, welding may become inconsistent. A small dimensional deviation can cause gaps, uneven weld penetration, rework, or scrap. In high-volume automotive manufacturing, such instability can reduce production efficiency and increase quality risk.

Structural stability is also essential. Fuel expands and contracts with temperature changes, and the vehicle body transmits vibration and impact to the fuel tank. The stamped end must resist deformation while maintaining its shape. A component with uneven thickness or excessive forming stress may deform under internal pressure or fatigue over time. Therefore, advanced die design and controlled forming are critical for long service life.

Surface quality is another important factor. Scratches, cracks, wrinkles, severe thinning, burrs, or dents may affect corrosion resistance and sealing performance. Smooth, clean, and defect-free surfaces improve both assembly and durability. For coated or treated materials, consistent surfaces also help maintain protective layers and reduce the risk of corrosion.

Core Product Advantages

Accurate Fit for Fuel Tank Bodies

One of the primary advantages of these gas tank end stamping parts is their ability to match tank bodies precisely. The stamped geometry is designed to correspond with the tank’s cylindrical or customized shell. Accurate contour control allows the part to align with welding fixtures, tank bodies, and related accessories. This improves assembly efficiency and reduces adjustment time during production.

Compared with ordinary stamped parts produced with less refined tooling, high-precision tank ends provide better consistency from piece to piece. This repeatability is especially valuable in automotive manufacturing, where stable component dimensions are necessary for automated or semi-automated production lines. Consistent fit reduces manual correction, lowers rejection rates, and supports predictable welding results.

Uniform Thickness and Stable Mechanical Strength

During deep drawing or forming, metal sheet can thin unevenly if the die design, blank holder force, lubrication, or forming sequence is not optimized. Excessive thinning may reduce structural strength and create weak zones. High-quality gas tank end stamping parts are formed with attention to material flow, pressure distribution, and draw depth control, helping maintain uniform thickness throughout critical areas.

Uniform thickness improves resistance to internal pressure and external vibration. It also supports stable welding because the weld zone has predictable material behavior. For automotive fuel tank applications, this combination of forming stability and mechanical reliability is a major advantage over low-cost parts that may suffer from uncontrolled thinning, wrinkling, or stress concentration.

Smooth Surfaces Free of Cracks and Deformation

Surface smoothness is not merely an appearance requirement. In fuel tank components, smooth surfaces support sealing, coating adhesion, corrosion resistance, and fatigue durability. Cracks, folds, or severe scratches can become leakage paths or corrosion initiation points. Proper die polishing, forming radius design, material control, and process monitoring help prevent such defects.

The gas tank end stamping parts are manufactured to achieve smooth, clean surfaces with minimal deformation. This helps the final fuel tank assembly perform reliably in humid environments, under road salt exposure, and during long-term operation. For customers, improved surface quality means lower risk of rework and better confidence in final product performance.

Resistance to Fuel Leakage and Internal Pressure

The end stamping part is a critical element in preventing fuel leakage. Its shape, flange area, edge quality, and dimensional accuracy influence the final seal of the tank. A stable stamped part gives the welding or joining process a reliable foundation. When the tank end aligns correctly with the shell, the sealing line becomes more consistent, helping the assembly resist leakage under pressure changes.

Fuel expansion, temperature changes, and vehicle movement create internal and external forces. A properly stamped tank end helps distribute these forces evenly. This prevents localized deformation and improves the safety margin of the complete fuel tank assembly.

Corrosion Resistance for Harsh Operating Conditions

Automotive fuel tanks often operate in environments with moisture, dirt, salt, fuel vapor, and changing temperatures. Corrosion resistance is therefore a key performance requirement. Material selection, surface integrity, and compatibility with subsequent coating or treatment processes all contribute to corrosion protection.

Cold-rolled steel parts can be designed for compatibility with anti-corrosion coatings, while aluminum alloy parts naturally provide strong corrosion resistance and weight reduction benefits. Smooth stamped surfaces help coatings cover evenly, reducing the chance of weak spots. Compared with poorly formed or rough-surfaced alternatives, these parts provide better long-term durability.

Compatibility with Passenger and Commercial Vehicle Applications

The product is suitable for a wide range of fuel tank applications, including passenger cars, commercial vehicles, and other automotive platforms requiring dependable tank end structures. Because fuel tank designs differ by vehicle model, engine type, fuel system layout, and installation space, customization capability is important. High-precision stamping production makes it possible to meet different shapes, sizes, flange structures, and accessory requirements.

This adaptability is especially useful for auto parts manufacturers that supply multiple vehicle programs. A manufacturer with strong die design and stamping capabilities can support both existing models and new product development, helping customers shorten development cycles and maintain stable supply.

Comparison with Conventional or Low-Precision Alternatives

Not all fuel tank end components deliver the same performance. Some competing products may be produced with outdated dies, limited inspection, unstable material control, or insufficient forming expertise. These limitations can lead to dimensional variation, surface defects, burrs, poor edge quality, excessive thinning, or inconsistent curvature. Such problems may not be obvious before assembly, but they can create significant risks during welding, leak testing, and vehicle operation.

High-precision gas tank end stamping parts offer several advantages over conventional alternatives. First, they reduce assembly difficulty because their shape and flange position are more consistent. Second, they help improve sealing performance because the joining surface is stable. Third, they support long-term durability because the formed structure is free of cracks and major defects. Fourth, they reduce total cost by lowering scrap, rework, and production delays.

Another key difference is the connection between die manufacturing and part production. When the stamping die is designed and manufactured by a company that also understands actual stamping production, process problems can be solved more efficiently. Die clearance, forming radius, blank size, draw bead design, trimming sequence, and calibration features can all be optimized based on real production feedback. This integrated capability is a major advantage over suppliers that only make parts without strong tooling knowledge or only make dies without production experience.

Evaluation Item	High-Precision Gas Tank End Stamping Parts	Conventional Low-Precision Alternatives
Dimensional Accuracy	Stable geometry supports accurate assembly with tank bodies and accessories.	Greater variation may cause welding gaps, fixture adjustment, and rework.
Surface Quality	Smooth surfaces help prevent leakage risk, coating defects, and corrosion points.	Scratches, wrinkles, or cracks may reduce durability and sealing reliability.
Thickness Control	Optimized forming helps maintain uniform thickness in critical areas.	Uncontrolled thinning can create weak zones and fatigue risk.
Production Repeatability	Precision dies and controlled stamping processes support consistent batch output.	Batch variation can increase inspection burden and scrap rate.
Assembly Efficiency	Accurate fit reduces manual correction and improves welding consistency.	Poor fit may slow production and affect line productivity.
Service Life	Mechanical strength and corrosion resistance support long-term use.	Defects and unstable forming may shorten component life.
Total Cost	Lower rework, better yield, and fewer quality issues improve overall value.	Lower initial price may be offset by higher scrap and repair costs.

Manufacturing Strength Behind the Product

Suzhou Shuangqisi Mold Equipment Co., Ltd. is located in Wujiang Economic Development Zone, Suzhou, China. The company is a professional manufacturer specializing in stamping dies, hardware stamping parts, and stamping automation equipment. With years of experience in die design, mold manufacturing, part production, and production service, the company is positioned to provide customers with complete solutions rather than isolated components.

The company has a technical team of approximately 60 staff members and has accumulated 15 years of experience in the mold industry. This experience is important because gas tank end stamping parts require both accurate product understanding and practical manufacturing know-how. A technically mature team can analyze product drawings, identify forming risks, design reliable dies, optimize production flow, and solve issues quickly during trial production.

The production equipment base includes imported wire cutting machines, CNC machining centers, more than 10 grinding machines of different sizes, 25 punch presses ranging from 80T to 400T, and other advanced precision machine tools. These resources allow the company to produce stamping dies with accurate profiles and process stamping parts across different tonnage requirements. The availability of multiple punch presses also supports flexible production planning for different part sizes and volumes.

In addition, the company has senior operators and experienced debugging personnel. This is a significant advantage in stamping production because die design alone does not guarantee quality. During die trial, operators and technicians must evaluate material flow, springback, wrinkling risk, lubrication conditions, press parameters, and edge quality. Skilled debugging personnel can adjust the die and process to achieve stable production more efficiently.

Integrated Die Design and Stamping Production

The quality of a stamped fuel tank end begins with the die. A well-designed die determines how the sheet metal flows, where stress is concentrated, how edges are trimmed, and whether the final part can meet dimensional requirements. Gas tank end stamping dies must account for forming depth, material thickness, blank shape, drawing radius, clearance, pressure distribution, springback, and flange accuracy.

Suzhou Shuangqisi Mold Equipment Co., Ltd. integrates mold design, mold manufacturing, and stamping production. This integration provides an advantage because the die is not treated as a separate product from the stamped part. Instead, the die is developed with the final production result in mind. If a trial part shows minor wrinkling, thinning, or dimensional deviation, the team can analyze both die structure and stamping parameters to make improvements.

For gas tank end stamping parts, this approach helps improve consistency and shorten development time. A customer may provide drawings, samples, or technical requirements. The engineering team can review the part geometry, evaluate forming feasibility, select suitable process steps, and design a die structure that supports stable mass production. When production begins, feedback from the press line can be used to refine the process and ensure long-term reliability.

Advanced Manufacturing Process

Material Selection and Incoming Inspection

The process begins with selecting suitable sheet metal materials. Cold-rolled steel is often chosen for its balance of strength, formability, dimensional stability, and cost efficiency. Aluminum alloy may be selected for lightweight designs and corrosion resistance. Material thickness, mechanical properties, surface condition, and chemical compatibility are considered according to customer requirements and fuel tank application conditions.

Incoming inspection is essential. Material defects such as rust, scratches, thickness variation, or inconsistent mechanical properties can affect forming quality. By checking raw materials before production, the manufacturer reduces the risk of cracks, wrinkles, and dimensional instability during stamping. Stable material quality provides the foundation for stable part quality.

Blanking and Pre-Form Preparation

Blanking cuts the sheet metal into a controlled shape before forming. The blank shape is not arbitrary. It is designed based on the final geometry and material flow requirements. If the blank is too small, excessive stretching can cause thinning or tearing. If it is too large, wrinkling or trimming waste may increase. Accurate blanking improves forming stability and material utilization.

For fuel tank end stamping parts, blank edge quality is also important. Burrs or uneven edges may affect subsequent forming and trimming. Controlled blanking ensures that the metal enters the drawing process with predictable behavior.

Drawing and Forming

Drawing is the key process that transforms a flat blank into a shaped tank end. During drawing, the press applies force through the die and punch, while the blank holder controls material flow. The goal is to achieve the required curvature and depth without cracks, wrinkles, or excessive thinning.

Gas tank end components often require smooth contours and stable wall thickness. Die radius, lubrication, press speed, blank holder force, and material properties must be balanced carefully. If the force is too high, tearing can occur. If the force is too low, wrinkling can appear. Experienced process control is therefore essential.

Trimming, Flanging, and Piercing

After forming, the part may require trimming to remove excess material and establish the final edge profile. A clean and accurate trim line helps the tank end align with the tank body. Flanging may be performed to create a welding surface or assembly feature. Piercing may be used to create holes for valves, fittings, sensors, or process requirements, depending on the product design.

Each secondary operation must maintain dimensional accuracy. Poor trimming can create gaps, while poor flanging can affect welding contact. Burr control is also important because sharp burrs may interfere with assembly or create safety concerns. Precision die manufacturing and controlled press operation help ensure clean edges and repeatable features.

Restriking and Calibration

Restriking or calibration may be used to improve final shape accuracy. Metal parts can spring back after forming due to elastic recovery. For fuel tank end components, even a small change in curvature or flange position may affect fit. Calibration helps correct the final geometry and improve repeatability.

This step is particularly valuable for parts that must meet strict OEM dimensional requirements. By refining the shape after primary forming, the manufacturer can deliver parts that align more consistently with assembly fixtures and tank shells.

Surface Treatment and Finishing Compatibility

Depending on customer requirements, gas tank end stamping parts may undergo surface cleaning, deburring, anti-corrosion treatment, or preparation for later coating. Even when final coating is performed by the customer or fuel tank assembly plant, the stamped part must provide a clean and suitable surface foundation.

Surface finishing compatibility is a practical advantage. Smooth stamped surfaces improve coating uniformity, reduce trapped contaminants, and support long-term corrosion resistance. For aluminum alloy parts, careful handling prevents surface damage and preserves corrosion performance. For steel parts, proper process control helps maintain coating readiness.

Precision Equipment and Production Capability

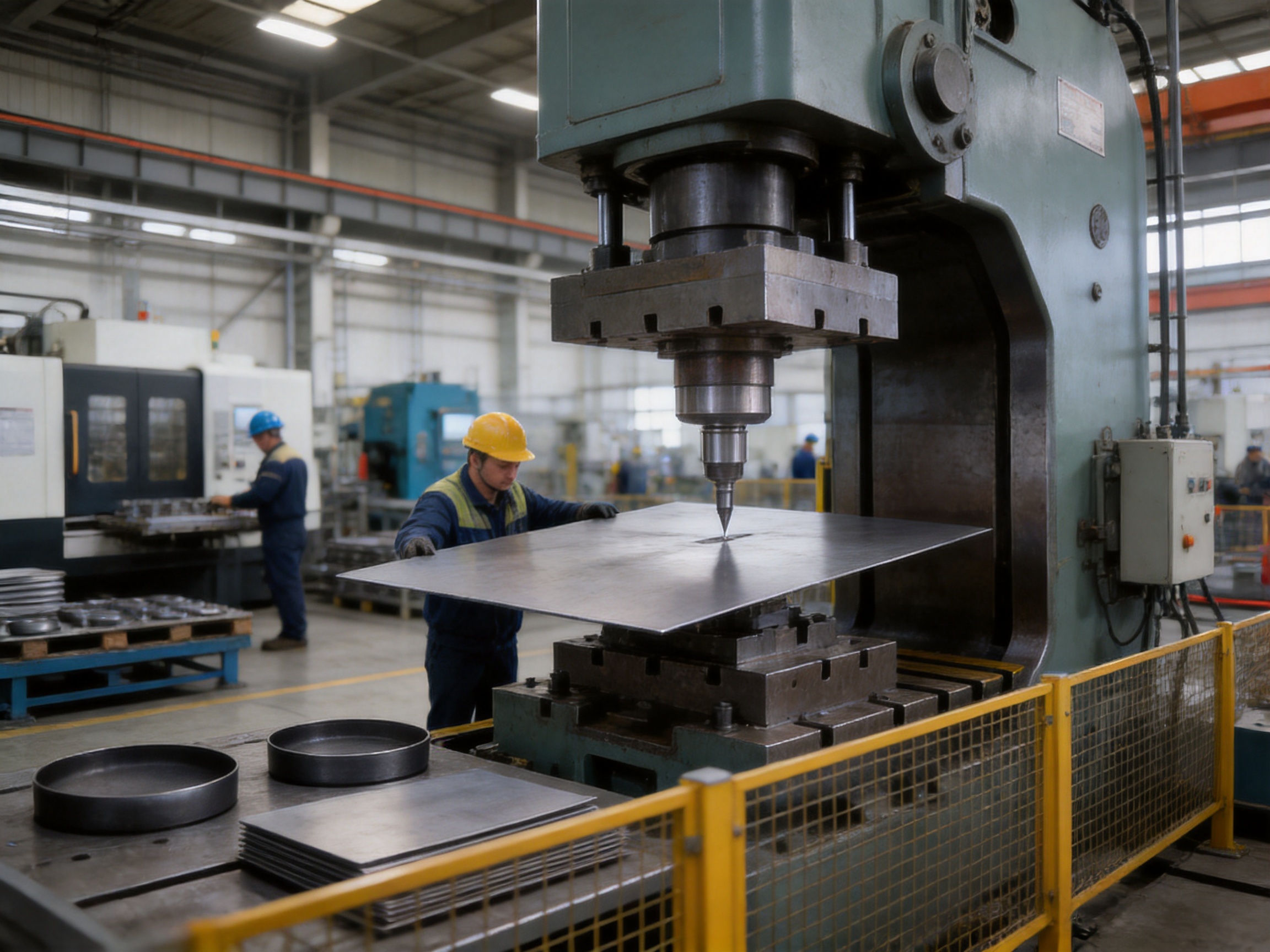

High-quality stamping parts require accurate dies and reliable presses. The company’s equipment system supports both die manufacturing and part production. Imported wire cutting machines are used for accurate profile cutting of die components. CNC machining centers support complex die structures, precise cavities, and repeatable component machining. Grinding machines improve surface accuracy and fit between die parts. These capabilities help produce dies that can withstand repeated production while maintaining dimensional stability.

The company’s 25 punch presses, ranging from 80T to 400T, provide flexibility for different product sizes, material thicknesses, and forming requirements. Gas tank end stamping parts may require different press tonnage depending on material, size, draw depth, and process layout. Having multiple press options allows the production team to match the process with the appropriate equipment, improving efficiency and quality.

Advanced machine tools alone are not enough. The combination of equipment, tooling knowledge, operator skill, and process discipline determines the final result. Experienced operators understand how press conditions affect part quality. Debugging personnel can identify causes of defects and improve process parameters. This human expertise, supported by precision equipment, gives the manufacturer a competitive advantage.

Quality Control for OEM-Level Reliability

Gas tank end stamping parts must undergo strict quality control because they are used in safety-related fuel tank assemblies. Quality inspection focuses on dimensions, surface defects, thickness consistency, edge condition, forming accuracy, and compatibility with assembly requirements. The goal is not only to detect defects but also to prevent them through stable process management.

Dimension checks verify whether the part meets drawing requirements and assembly tolerances. Critical dimensions may include outer diameter, curvature, flange width, flange angle, hole position, trim line, overall height, and matching profile. Gauges, measuring tools, and inspection fixtures can be used to confirm repeatability during production.

Surface inspection identifies cracks, wrinkles, dents, scratches, deformation, and other visible defects. Since fuel tank end parts contribute to sealing and corrosion resistance, surface integrity is especially important. Parts that show forming cracks or severe surface damage should not enter final assembly.

Thickness control is also valuable. During drawing, some areas may stretch more than others. Inspection or process validation can confirm that thinning remains within acceptable limits. Stable thickness distribution supports mechanical strength and pressure resistance.

Process monitoring helps maintain quality during mass production. Press parameters, lubrication, material batch information, die condition, and inspection records can be controlled to reduce variation. This supports traceability and continuous improvement, especially for customers with strict automotive supply requirements.

Advantages of Turnkey Stamping Solutions

A major strength of the manufacturer is the ability to provide turnkey solutions for stamping molds and stamping automation. This matters because many customers do not simply need a part; they need a stable production solution. A turnkey approach can include product analysis, die design, die manufacturing, trial production, process optimization, mass stamping, and automation support.

In 2016, the company invested in and established Suzhou Keshuang Intelligent Technology Co., Ltd., focusing on stamping automation equipment. This expanded capability allows the group to support automated feeding, transfer, handling, and production line integration. For customers requiring higher efficiency, labor reduction, and stable repeatability, automation can significantly improve production value.

For gas tank end stamping parts, automation can help maintain consistent production rhythm and reduce handling damage. Automated or semi-automated systems can improve safety, reduce manual variation, and support larger production volumes. When automation equipment and stamping dies are developed with coordinated engineering, the entire production line can become more efficient and reliable.

Compared with suppliers that only provide stamped parts, an integrated solution provider can respond to customer needs more comprehensively. If the customer needs a new part, the supplier can develop the die. If the customer needs production improvement, the supplier can support automation. If the customer needs cost reduction, the supplier can optimize material utilization, process steps, and equipment selection. This creates long-term value beyond the individual component price.

Cost Control Without Sacrificing Quality

In the automotive supply chain, cost is always important. However, the lowest unit price is not always the lowest total cost. Gas tank end stamping parts with poor accuracy may cause rework, welding defects, leak test failures, production delays, and warranty risk. High-quality parts may offer better total cost performance because they reduce hidden losses.

The manufacturer’s cost control advantage comes from integrated tooling, stable production equipment, experienced staff, and efficient process design. When dies are designed correctly from the beginning, trial adjustments are reduced. When material utilization is optimized, waste decreases. When press operations are stable, scrap rates are lower. When inspection is systematic, quality problems are detected early. These factors help deliver competitive pricing while maintaining dependable performance.

The company’s ability to invest in related production equipment according to customer needs can also support cost-effective service. For customers with stable volume requirements, dedicated equipment or optimized production layouts may reduce long-term manufacturing cost. This flexible and cooperative approach is valuable for automotive component programs where cost, quality, and delivery must be balanced.

Application Scenarios

Passenger Car Fuel Tanks

Passenger cars require fuel tank components that are compact, lightweight, safe, and stable. Gas tank end stamping parts used in passenger vehicles must fit accurately within limited underbody space and support consistent welding. Smooth surfaces and corrosion resistance help extend tank service life under everyday driving conditions, including rain, humidity, and road contaminants.

Commercial Vehicle Fuel Tanks

Commercial vehicles often operate for long hours and may experience stronger vibration, heavier loads, and more demanding road conditions. Fuel tank end parts for commercial vehicles must offer reliable mechanical strength and pressure resistance. Durable stamped ends help maintain tank integrity over extended mileage and challenging environments.

Replacement and Maintenance Supply

Maintenance teams and aftermarket fuel tank repair or replacement suppliers need dependable components that fit correctly and reduce installation difficulty. High-quality tank end stamping parts can support repair efficiency and reduce risk of leakage after service. For replacement applications, dimensional consistency is especially important because the part must match existing tank structures.

New Energy and Hybrid Vehicle Support Components

Although battery electric vehicles reduce demand for traditional fuel tanks, hybrid vehicles and certain new energy platforms still require fuel storage components. In addition, stamping expertise developed for fuel tank parts can also support related metal components for new energy vehicles. The manufacturer’s experience with new energy vehicle customers and stamping automation provides a strong foundation for adapting to evolving automotive needs.

Design Considerations for Custom Gas Tank End Stamping Parts

Customers seeking custom gas tank end stamping parts should consider several technical factors before production. The first is product geometry. The end profile, flange design, hole position, curvature, and depth must be compatible with the tank body and assembly process. Early design review can reduce later production problems.

The second factor is material selection. Steel and aluminum have different forming characteristics, welding methods, corrosion behavior, and cost structures. The chosen material should match the fuel tank design, expected service environment, vehicle weight target, and production process.

The third factor is tolerance requirements. Automotive fuel tank components should have clear critical dimensions. Not every dimension requires the same tolerance level, but assembly-related features must be controlled carefully. Defining critical-to-quality characteristics helps the manufacturer design suitable dies and inspection fixtures.

The fourth factor is production volume. Prototype production, small batches, and mass production may require different tooling strategies. For high-volume production, durable dies, efficient press layouts, and automation may offer better long-term value. For lower volumes, flexible process planning may be more appropriate.

The fifth factor is surface treatment. If the part will be welded, coated, painted, or otherwise treated, the stamping process should support the downstream operation. Surface cleanliness, burr control, and deformation prevention all influence subsequent process quality.

How the Manufacturer Supports Customer Projects

A typical customer project may begin with technical communication. The customer provides drawings, samples, assembly requirements, material preferences, and production expectations. The engineering team reviews the information and evaluates manufacturability. Potential risks such as thinning, wrinkling, springback, or difficult trimming areas can be identified early.

Next, the team develops the stamping process plan. This may include deciding the number of forming stages, blank shape, die structure, press tonnage, trimming method, and inspection points. If automation is needed, the production flow can be designed with feeding and handling systems in mind.

After die design and manufacturing, trial production is performed. Trial parts are inspected for dimensions, surface quality, thickness distribution, and assembly fit. If adjustments are needed, the die and process are refined. Once the part meets requirements, production can move toward batch manufacturing.

During mass production, quality control and process monitoring continue. The company’s experienced operators and debugging personnel help maintain stable output. If a customer needs technical support, process improvement, or design modification, the integrated team can respond efficiently.

Why Choose These Gas Tank End Stamping Parts?

Customers choose these gas tank end stamping parts because they combine precision, durability, manufacturability, and cost-effective production. The parts are designed to seal and strengthen automotive fuel tank assemblies. They provide accurate fit, uniform thickness, smooth surfaces, corrosion resistance, and compatibility with multiple vehicle applications.

Compared with competitors that may rely on less precise equipment or limited tooling capability, Suzhou Shuangqisi Mold Equipment Co., Ltd. offers deeper manufacturing integration. The company is not only a stamping part supplier but also a stamping die manufacturer and automation solution provider. This combination supports better control over product quality, production stability, and long-term cost.

The company’s advanced equipment, including imported wire cutting machines, CNC machining centers, multiple grinding machines, and punch presses from 80T to 400T, provides the technical foundation for precision manufacturing. Its team of 60 technical staff, senior operators, and experienced debugging personnel adds practical expertise. Its 15 years of mold industry experience and service to customers in fields such as servo drives, compressors, and new energy vehicles demonstrate its ability to meet demanding industrial requirements.

For automotive fuel tank producers, the value is clear. A high-quality tank end part improves assembly efficiency, supports leak prevention, resists deformation, and extends service life. For procurement teams, reliable production reduces supply risk. For engineers, precise stamping improves design realization. For maintenance teams, consistent components reduce installation uncertainty. These advantages make the product a strong choice for customers seeking dependable automotive stamping parts.

Technical Best Practices for Long-Term Performance

To obtain the best performance from gas tank end stamping parts, customers and manufacturers should cooperate closely throughout the product lifecycle. During design, the part should avoid unnecessarily sharp corners, excessive draw depths, or difficult-to-control features unless they are required by function. Forming-friendly design improves quality and reduces cost.

During material selection, the customer should define performance requirements clearly. If the tank will operate in a highly corrosive environment, material and surface protection should be selected accordingly. If weight reduction is critical, aluminum alloy may be considered. If cost and strength are priorities, cold-rolled steel may be suitable.

During assembly, welding or joining parameters should be compatible with the stamped part. Even a well-made tank end requires proper assembly control. Fixture accuracy, welding heat input, cleaning, and leak testing all contribute to final tank quality. The stamped part provides the foundation, while the complete process determines final performance.

During storage and transportation, parts should be protected from impact, moisture, contamination, and deformation. Smooth surfaces and accurate flanges must be preserved before assembly. Proper packaging and handling reduce the chance of scratches or dents.

Quality Value Across the Automotive Supply Chain

Automotive supply chains depend on stable component quality. A single defective fuel tank end part can disrupt assembly, create safety concerns, or trigger additional inspection. Therefore, the value of a reliable stamping supplier extends beyond the part itself. It affects production planning, inventory management, warranty prevention, and customer confidence.

High-precision gas tank end stamping parts contribute to quality stability at several levels. At the component level, they provide accurate shape and strong surfaces. At the assembly level, they improve welding and sealing consistency. At the vehicle level, they support safe fuel storage. At the business level, they reduce hidden costs related to scrap, rework, and delivery delays.

This value is especially important for OEM and Tier suppliers working under strict schedules and quality systems. When a supplier can provide both technical consultation and stable production, customers gain a more reliable partnership. The manufacturer’s combination of mold expertise, stamping production, and automation capability supports this type of long-term cooperation.

Q&A Section

Q1: What is the main function of gas tank end stamping parts?

Gas tank end stamping parts are used to close and seal the two ends of an automotive fuel tank body. They help maintain structural stability, support welding or joining, resist internal pressure, and prevent fuel leakage when properly assembled into the complete tank system.

Q2: What materials are commonly used for these parts?

Common materials include cold-rolled steel and aluminum alloy. Cold-rolled steel offers strength, formability, dimensional stability, and cost efficiency. Aluminum alloy offers lightweight performance and good corrosion resistance. The final material choice depends on the tank design, vehicle application, fuel type, corrosion requirements, and customer specifications.

Q3: Why is stamping suitable for producing gas tank end components?

Stamping is suitable because it can produce accurate, repeatable, and high-strength metal shapes in efficient batch production. With a properly designed die, stamping can create smooth contours, controlled flanges, consistent wall thickness, and clean edges, all of which are important for fuel tank assembly.

Q4: How do high-precision stamped tank ends help prevent fuel leakage?

They provide accurate geometry and stable joining surfaces, allowing the tank end to align closely with the tank body. This improves welding or sealing consistency and reduces the risk of gaps, deformation, and weak sealing areas. Smooth, crack-free surfaces also reduce potential leakage paths.

Q5: What makes these parts better than lower-cost alternatives?

Their advantages include better dimensional consistency, smoother surfaces, controlled thickness, stronger mechanical performance, improved corrosion resistance, and better assembly efficiency. Lower-cost alternatives may have hidden costs such as rework, welding defects, leak test failures, or shorter service life.

Q6: Can the parts be customized for different vehicle models?

Yes. Gas tank end stamping parts can be customized according to customer drawings, samples, material requirements, size specifications, flange structures, hole positions, and assembly needs. Strong die design and stamping production capability make customization practical for different passenger car and commercial vehicle applications.

Q7: What manufacturing capabilities support product quality?

Product quality is supported by integrated stamping die design, mold manufacturing, precision machining, punch press production, experienced operators, and strict inspection. Equipment such as imported wire cutting machines, CNC machining centers, grinding machines, and 80T to 400T punch presses helps ensure accurate and stable production.

Q8: Why is an integrated die and stamping supplier beneficial?

An integrated supplier can control both the tooling and production process. This makes it easier to optimize forming, reduce defects, improve repeatability, and solve technical problems quickly. It also supports turnkey solutions, including die development, stamping production, and automation integration.

Q9: Are these parts suitable for harsh operating environments?

Yes. When manufactured with suitable materials and controlled processes, the parts can resist vibration, humidity, temperature changes, internal fuel pressure, and corrosion risk. Their smooth surfaces, stable thickness, and mechanical strength support long-term fuel tank durability.

Q10: What should customers provide when requesting a quotation or custom project?

Customers should provide drawings, samples if available, material requirements, thickness specifications, expected production volume, surface treatment requirements, critical dimensions, assembly conditions, and quality standards. Clear information helps the manufacturer design the right stamping process and provide accurate technical support.

Conclusion

Gas tank end stamping parts play a vital role in automotive fuel tank safety, durability, and assembly efficiency. They are not ordinary metal covers; they are precision-formed structural components that must meet demanding requirements for fit, sealing, strength, corrosion resistance, and repeatability. High-quality production depends on material control, advanced die design, precise machining, stable stamping, skilled debugging, and strict inspection.

The gas tank end stamping parts described in this article offer accurate matching with tank bodies, uniform thickness, smooth and crack-free surfaces, resistance to fuel leakage, mechanical stability, and adaptability to passenger and commercial vehicle fuel tank models. These advantages help customers reduce assembly problems, improve product reliability, and lower total manufacturing cost.

Suzhou Shuangqisi Mold Equipment Co., Ltd. strengthens this product value through integrated capabilities in stamping dies, stamping parts, and stamping automation equipment. With 15 years of mold industry experience, a 60-person technical team, advanced precision machining equipment, multiple punch presses, experienced operators, and turnkey solution capability, the company can support customers from design analysis to stable production. For automotive component manufacturers and fuel tank assembly suppliers seeking reliable, durable, and cost-effective gas tank end stamping parts, this product provides a strong and practical solution.

References

1. Society of Automotive Engineers. Automotive Fuel Systems and Fuel Tank Design Principles.

2. ASM International. Sheet Metal Forming Fundamentals and Applications.

3. Schuler GmbH. Metal Forming Handbook: Stamping, Drawing, and Press Technology.

4. Altan, T., and Tekkaya, A. E. Sheet Metal Forming: Processes and Applications.

5. International Organization for Standardization. Quality Management Systems for Automotive Production and Relevant Service Part Organizations.

6. Davis, J. R. Corrosion of Aluminum and Aluminum Alloys.

7. Lange, K. Handbook of Metal Forming.

Product: Gas tank end stamping parts
