Precision Copper Busbar Stamping Parts for New Energy Vehicles

As electric vehicles continue to develop toward higher voltage, greater power density, faster charging, and improved energy efficiency, the reliability of conductive components has become increasingly important. Among these components, copper busbars play a critical role in distributing electrical power between the battery pack, battery management system, drive motor, inverter, DC/DC converter, charging system, and other high-voltage assemblies. New energy vehicle copper busbar stamping parts provide a compact, low-resistance, and highly repeatable alternative to traditional cable-based wiring solutions.

These parts are manufactured from high-purity copper materials such as C11000, C10100, and T2 copper. With copper content commonly reaching or exceeding 99.9%, the material provides excellent electrical and thermal conductivity. Through precision stamping, forming, bending, piercing, deburring, and surface treatment processes, flat copper sheets can be transformed into complex conductive components with controlled dimensions and stable performance.

For automotive applications, dimensional accuracy, electrical reliability, mechanical strength, corrosion resistance, and production consistency must be controlled simultaneously. The manufacturing process must also support different shapes, thicknesses, hole patterns, terminal structures, insulation requirements, and current ratings. A professional stamping die manufacturer with integrated mold design, stamping production, and automation capability can help customers achieve these requirements while controlling production cost and delivery time.

Suzhou Shuangqisi Mold Equipment Co., Ltd. provides stamping die design and manufacturing, precision metal stamping, and stamping automation solutions for automotive, electrical, servo drive, compressor, and new energy vehicle applications. Its integrated capabilities enable the company to support projects from product evaluation and die development to trial production, mass production, inspection, and automated process improvement.

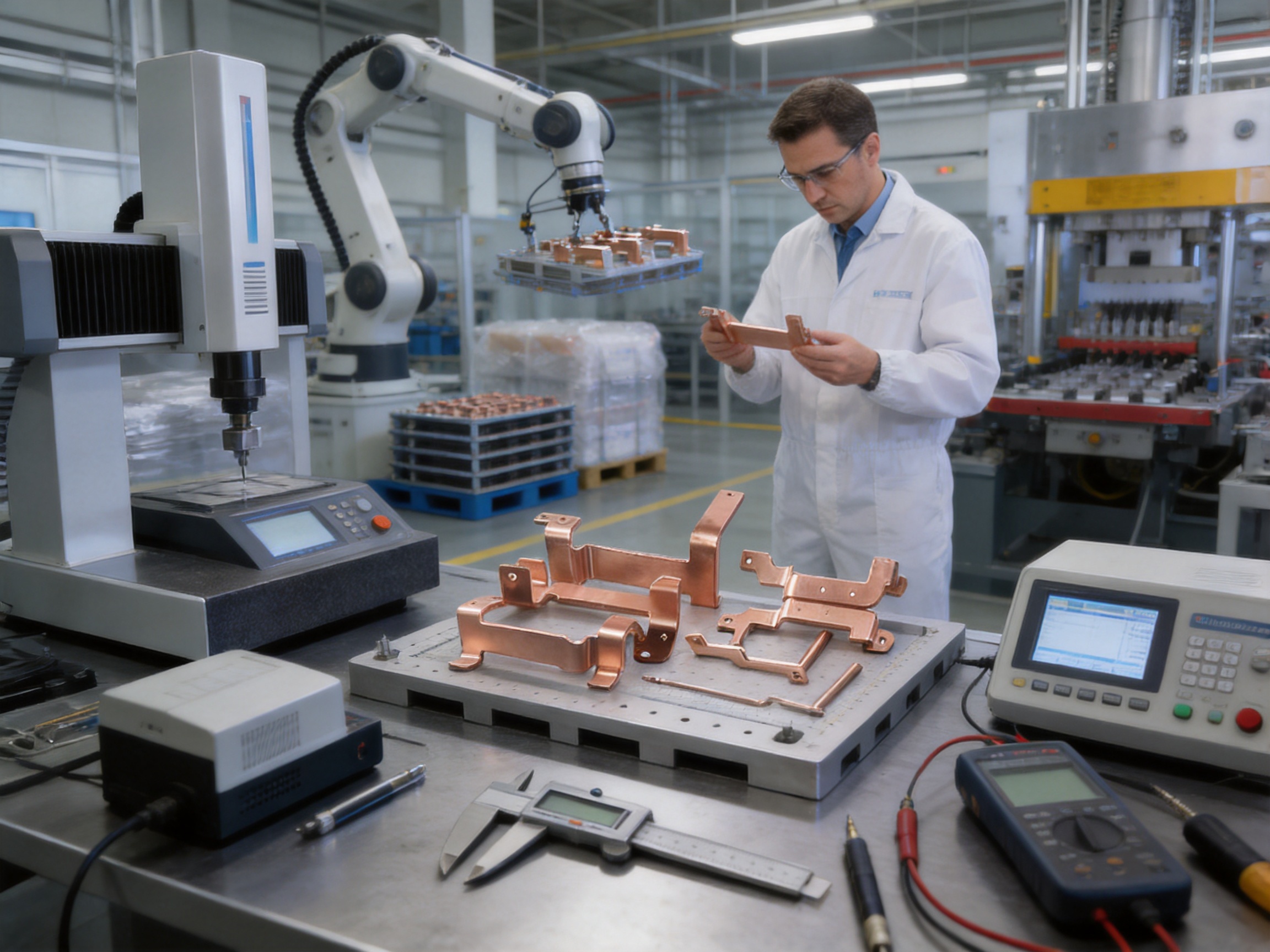

New energy vehicle copper busbar stamping parts

1. What Are New Energy Vehicle Copper Busbar Stamping Parts?

A copper busbar stamping part is a formed conductive component produced by pressing copper sheet or strip material through a specially designed stamping die. Unlike a conventional wire harness, a busbar generally uses a rigid or semi-rigid copper structure with a defined cross-section and a carefully engineered connection layout. It may include mounting holes, terminal interfaces, bends, slots, embossed features, fastening areas, and connection points for electrical modules.

In a new energy vehicle, copper busbars can be used in battery modules, battery packs, power distribution units, high-voltage junction boxes, inverters, motor controllers, charging systems, and DC/DC converter assemblies. The exact shape depends on the available installation space, current requirements, insulation design, connection method, thermal management system, and vehicle architecture.

Busbars are usually designed to carry electrical current across a relatively short distance. Their broad and flat geometry provides a large conductive area within a compact package. This design can reduce the need for multiple cables, terminals, connectors, and cable-routing structures. It can also make assembly more systematic because the busbar is manufactured according to a fixed three-dimensional layout.

Precision stamping is especially suitable for busbar production because it allows high-volume manufacturing with repeatable dimensions. A progressive die, compound die, transfer die, or a combination of forming tools can be selected according to the part structure and production volume. For complex busbars, several operations may be completed in a controlled sequence, including blanking, piercing, bending, forming, embossing, and part separation.

Typical Material Options

C11000 copper is widely used when high electrical conductivity and good forming performance are required. C10100 oxygen-free copper may be selected for applications that require particularly high conductivity and controlled oxygen content. T2 copper is another common material option for electrical components and conductive parts. The final choice depends on electrical specifications, mechanical requirements, forming behavior, availability, cost, and customer standards.

Material thickness may vary according to the current-carrying requirement, available installation space, heat dissipation conditions, and mechanical structure. The design must balance conductivity and strength with formability and weight. A thicker busbar may carry more current and provide improved mechanical rigidity, while a thinner component may be more suitable for compact applications with lower current demand.

Electrical and Thermal Function

The primary function of a copper busbar is to provide a low-resistance path for current. High-purity copper offers conductivity of up to approximately 59.6 MS/m and thermal conductivity of approximately 385 W/mK under appropriate material conditions. These characteristics help reduce resistive energy loss and support the transfer of heat away from high-current areas.

When current passes through a conductor, electrical resistance produces heat. Excessive heat can accelerate material aging, damage insulation, increase contact resistance, and reduce system reliability. A correctly designed busbar helps limit voltage drop and heat generation by providing an appropriate cross-sectional area and efficient connection geometry.

However, conductivity is not determined by material grade alone. It is also influenced by thickness, surface condition, connection quality, plating, contact pressure, fastener design, operating temperature, and the length of the current path. For this reason, busbar manufacturing must combine material control with precise forming and reliable inspection.

2. Main Applications in Electric and Hybrid Vehicles

New energy vehicle copper busbar stamping parts are used in several high-voltage and low-voltage electrical assemblies. Their compact structure and precise geometry make them suitable for applications where electrical performance must be combined with limited installation space.

Battery Pack Interconnections

Battery packs contain multiple cells or modules that must be connected in series, parallel, or a combination of both. Copper busbars can connect cell terminals, module terminals, sensing circuits, and pack-level power terminals. The busbar layout must accommodate cell spacing, insulation barriers, cooling structures, service disconnects, and safety requirements.

For battery pack applications, consistency is essential. A small dimensional deviation may affect terminal alignment, fastening force, insulation clearance, or the fit of a protective cover. Precision stamping helps maintain stable hole locations, bend angles, terminal widths, and overall dimensions across large production batches.

Battery Management Systems

The battery management system monitors voltage, temperature, current, state of charge, and other operating conditions. Copper conductive parts may be used in power distribution and sensing-related assemblies. Depending on the design, these parts may be combined with smaller signal terminals, insulating films, plastic carriers, or integrated monitoring structures.

Because BMS assemblies often have limited space, the busbar must be designed with accurate bends and controlled edges. Sharp burrs, excessive deformation, or inconsistent terminal positions could interfere with insulation or electronic components. Proper die clearance, forming control, and deburring procedures are therefore important.

Drive Motors and Inverters

Electric drive systems require efficient power transfer between the battery, inverter, and motor. Busbars may be used in inverter input circuits, motor controller assemblies, and internal power distribution structures. These components must withstand electrical loading, thermal cycling, vibration, and continuous changes in operating conditions.

In high-power applications, the busbar design may include rounded corners, enlarged contact zones, parallel conductive paths, or special mounting features. The stamping die must accurately reproduce these features while preventing cracks, wrinkles, distortion, or excessive springback.

DC/DC Converters and Charging Systems

DC/DC converters transform high-voltage battery power into lower-voltage power for auxiliary vehicle systems. On-board chargers and charging distribution assemblies also require reliable conductive paths. Copper busbars help reduce unnecessary wiring and create compact power connections inside these units.

The production process must be adapted to the specific electrical and mechanical requirements of each assembly. A component used in a high-current charging module may require a different thickness, plating specification, forming sequence, and inspection plan from a busbar used in a lower-current auxiliary circuit.

3. Advantages Compared with Traditional Wiring Harnesses

Copper busbar stamping parts offer several advantages over traditional cable-based wiring solutions. The most important benefits relate to electrical efficiency, packaging, assembly, thermal management, and production consistency.

Lower Electrical Resistance

A properly designed copper busbar can provide a short, direct current path. High-purity copper minimizes resistance and can help reduce voltage loss. The broad conductive surface and optimized cross-sectional area are particularly useful in high-current circuits ranging from approximately 30 A to 2,000 A, depending on the design and operating conditions.

Traditional wiring harnesses may require multiple cables, crimp terminals, connectors, and routing bends. Each connection introduces potential resistance and possible failure points. A busbar can simplify the current path and reduce the number of individual connection elements.

Improved Space Utilization

Electric vehicles contain tightly packaged battery and power electronic systems. Conventional cables require bending radii, clips, holders, protective sleeves, and routing space. A stamped busbar can be shaped to follow the exact layout of the assembly, helping reduce unused space.

Three-dimensional bends and formed mounting features allow the component to fit around modules, cooling channels, covers, and insulation barriers. As a result, a busbar may contribute to a smaller and more organized electrical assembly.

Reduced Assembly Complexity

When a wiring harness contains many separate cables and connectors, assembly may require extensive manual routing and fastening. A stamped busbar can combine multiple conductive functions into one engineered part. This may reduce the number of assembly operations and improve process repeatability.

Busbars can be installed using bolts, rivets, laser welding, ultrasonic welding, clips, or other connection methods selected by the customer. The part can also be supplied with defined holes, slots, contact surfaces, or locating features that support automated assembly.

Efficient Heat Dissipation

Copper has high thermal conductivity, enabling heat to spread through the conductive structure. This is important in high-current systems where localized heat generation can affect system performance. The busbar may be designed to contact heat sinks, cooling plates, or other thermal management structures.

Thermal performance depends on the complete application design. Material thickness, current level, ambient temperature, contact resistance, ventilation, insulation, and cooling conditions all influence the final result. For this reason, busbar design should be evaluated together with the vehicle electrical and thermal system.

Consistent Production Quality

Manual cutting and bending can create variation in length, hole position, bend angle, and terminal geometry. Precision stamping dies provide repeatable forming conditions and stable production output. Once the die is properly developed and validated, large quantities can be manufactured with consistent dimensions.

Stable production quality is particularly valuable for automotive programs. It supports standardized assembly, reduces rework, simplifies inspection, and helps maintain compatibility between the busbar and related components.

Potential Weight and Cost Benefits

Busbars can reduce the need for multiple cables, terminals, brackets, and protective routing components. Depending on the vehicle design, this may help reduce assembly weight and system cost. The actual cost advantage depends on material utilization, production volume, tooling investment, plating requirements, and assembly method.

Efficient nesting of parts within the copper strip or sheet can improve material utilization. Progressive stamping and automated handling may further reduce labor content in mass production. A professional tooling supplier can evaluate these factors during the early design stage.

Performance Area	Copper Busbar Stamping Part	Traditional Wiring Harness
Current path	Short, formed conductive path	Flexible cable path with multiple connections
Electrical resistance	Low when correctly designed and assembled	Influenced by cable length, terminals, and connectors
Space utilization	Can be shaped to fit the assembly	Requires routing and bending space
Assembly	Suitable for standardized or automated installation	May require multiple routing and fastening operations
Thermal performance	High copper thermal conductivity and broad conductive area	Depends on cable construction, insulation, and routing
Production consistency	High repeatability after die validation	More dependent on cable preparation and manual assembly
Design flexibility	Suitable for flat, bent, pierced, and formed geometries	Flexible routing with different packaging requirements

4. Surface Treatment and Protection

Although copper provides excellent conductivity, its surface can oxidize under certain environmental conditions. Surface treatment is therefore commonly applied to improve corrosion resistance, contact stability, solderability, or compatibility with other materials.

Tin Plating

Tin plating is commonly used for electrical connection parts because it provides suitable contact behavior, corrosion protection, and compatibility with many terminal systems. It may also support soldering or specific joining processes. A typical plating thickness for the product range may be approximately 3 to 5 micrometers, subject to the customer’s technical specification.

Nickel Plating

Nickel plating can provide a durable protective surface and good resistance to heat and corrosion. It may be selected for applications exposed to elevated temperatures, repeated environmental changes, or demanding mechanical contact conditions.

Silver Plating

Silver has excellent electrical conductivity and may be used when low contact resistance and high electrical performance are required. Silver-plated surfaces must be specified carefully according to the working environment, contact design, and cost requirements.

Plating Quality Control

Surface treatment quality depends on pretreatment, cleaning, plating bath control, thickness uniformity, adhesion, surface appearance, and post-treatment handling. The plating specification should define coating material, thickness, coverage area, adhesion requirements, allowable defects, and inspection method.

Part geometry can influence plating uniformity. Deep bends, narrow slots, internal corners, and contact areas may require special attention. Coordination between stamping design and plating design helps ensure that critical surfaces receive the required protection without unnecessary coating cost.

5. Dimensional and Mechanical Requirements

New energy vehicle busbars must meet both electrical and mechanical requirements. Typical dimensional accuracy may be controlled within approximately ±0.05 to ±0.20 mm, depending on the feature, material thickness, forming process, and customer drawing.

Hole and Terminal Accuracy

Mounting holes and terminal interfaces must align with bolts, studs, modules, connectors, and other mating components. Incorrect hole position can create assembly stress, reduce contact area, or prevent installation. Precision punching and careful die alignment are essential for these features.

Bend Angle and Three-Dimensional Form

Many busbars are not flat components. They may include multiple bends in different directions to connect terminals at different heights or positions. Bend angle, bend radius, springback, and forming sequence must be considered during tool development.

Copper is generally formable, but the actual behavior depends on material temper, thickness, grain direction, bend radius, and forming force. Excessively tight bends may cause cracking, while insufficient control may result in angle variation or distortion. Simulation, trial stamping, and dimensional verification can help optimize the forming process.

Edge and Burr Control

Cut edges and pierced holes must be controlled to prevent damage to insulation, protective films, adjacent components, or operators. Excessive burrs can also affect contact reliability. Die clearance, punch condition, material support, and secondary deburring processes all influence edge quality.

Vibration and Temperature Resistance

Automotive electrical components may be exposed to vibration, shock, humidity, thermal cycling, and temperature extremes. The product is designed for operating conditions that may range from approximately -40°C to 125°C, depending on the vehicle system and customer requirements.

Mechanical reliability depends on the busbar geometry, fastening method, support structure, plating, insulation, and surrounding assembly. A properly designed part should maintain its connection and dimensional stability during expected service conditions.

6. Precision Stamping Die Design for Copper Busbars

The stamping die is the foundation of busbar manufacturing. Its structure determines part accuracy, production speed, material utilization, service life, and process stability. Copper is conductive and relatively soft compared with many ferrous materials, but it can still present challenges such as burr formation, deformation, scratching, springback, and surface damage.

Product Feasibility Review

Before die design begins, the product drawing should be reviewed for manufacturability. Important factors include material grade, thickness, grain direction, bend radii, hole size, hole-to-edge distance, minimum web width, forming height, tolerance requirements, plating areas, and inspection datum selection.

Design changes made at this stage can prevent later production difficulties. For example, a small adjustment to a bend radius may reduce cracking risk. A revised hole position may improve die strength. A modified carrier layout may increase material utilization and improve automated transfer.

Die Structure Selection

A progressive die is appropriate when a large quantity of similar parts must be produced from coil or strip material. Multiple operations are arranged in sequence, and the strip moves through the die at a controlled pitch. This structure supports high productivity and can be combined with automatic feeding and part collection.

A compound die may complete several cutting operations in one station. It can be useful for flat or relatively simple components that require accurate blanking and piercing. A transfer die may be considered for larger or more complex parts that require several forming operations and individual part transfer between stations.

The tooling choice depends on part size, complexity, output requirement, material thickness, tolerance, available press equipment, and investment plan. The objective is to create a balanced manufacturing solution rather than simply selecting the most complex die structure.

Clearance and Cutting Quality

Correct punch-and-die clearance is essential for copper stamping. Excessive clearance may cause large burrs and poor edge quality, while insufficient clearance can increase cutting force, accelerate tool wear, and create secondary deformation. The clearance must be determined according to material grade, thickness, tensile properties, and required edge condition.

Punches, die inserts, guide components, and forming surfaces must be manufactured and assembled accurately. Tool steel selection, heat treatment, surface finishing, and maintenance planning influence die life and production stability.

Forming and Springback Control

When copper is bent, the material may partially recover after the forming force is removed. This springback can affect the final angle and position of the busbar. The die may require compensation, over-bending, restriking, or a multi-step forming sequence.

For complex three-dimensional shapes, forming operations should be sequenced to distribute deformation gradually. Excessive deformation in one operation may create wrinkles, cracks, or dimensional instability. Trial production allows engineers to verify the forming method and refine the tool before mass production.

Guiding and Positioning

Accurate guiding and positioning prevent strip deviation, station-to-station accumulation error, and part misalignment. Guide pins, pilot pins, material guides, lifters, and stripper systems must be designed to match the strip layout and production speed.

For plated or surface-sensitive copper parts, contact surfaces should be designed to reduce scratching and marking. Proper handling is particularly important when the finished part has visible or electrically active plated areas.

7. Manufacturing Process from Material to Finished Part

A stable manufacturing process combines engineering preparation, material control, die manufacturing, stamping, secondary operations, surface treatment, inspection, and packaging. Each stage contributes to the final quality of the busbar.

Engineering and Drawing Review

The process begins with customer drawings, three-dimensional models, specifications, and application information. Engineers review the electrical function, mechanical interfaces, tolerance requirements, material grade, plating requirements, expected production volume, and inspection standards.

Where necessary, the design team may recommend modifications to improve formability, material utilization, die strength, or assembly performance. A clear design review helps align customer expectations with the actual manufacturing process.

Material Purchasing and Incoming Inspection

Copper sheet or coil should be purchased according to the approved material grade, thickness, temper, surface condition, and width tolerance. Incoming inspection may include material certificate review, dimensional measurement, surface inspection, and verification of relevant physical or chemical properties.

Material traceability is important for automotive components. Each batch should be identifiable through production and inspection records so that any quality issue can be investigated efficiently.

Die Manufacturing

Die components are machined using precision equipment such as wire cutting machines, CNC machining centers, grinding machines, and other specialized machine tools. Accurate machining is required for cutting edges, forming surfaces, guide systems, inserts, and assembly interfaces.

After machining, components are inspected, fitted, and assembled. The die is then installed on a suitable press for trial stamping. Trial results are compared with the product drawing, and adjustments are made to cutting clearance, forming height, bend compensation, carrier design, or other process features.

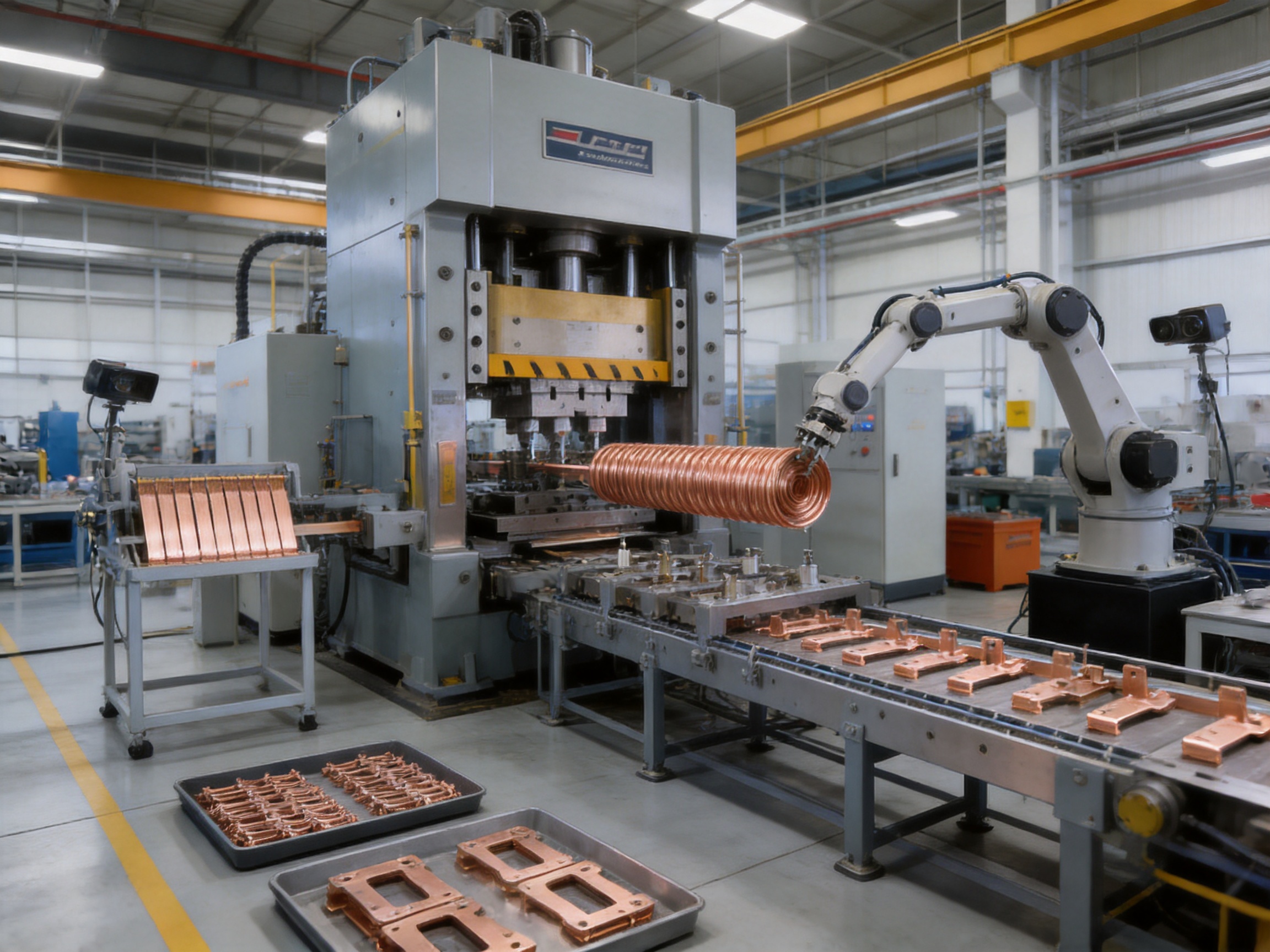

Stamping and Forming

During production, copper strip or sheet is fed into the stamping die. Depending on the die structure, the process may include blanking, piercing, notching, bending, embossing, forming, and part separation. Press parameters must be set according to material thickness, tool structure, stroke, speed, and required output.

Lubrication may be used when appropriate to reduce friction and tool wear. The lubrication method must be compatible with later cleaning, plating, welding, or assembly requirements. Production operators monitor feeding, strip alignment, press operation, part appearance, and abnormal conditions.

Deburring and Cleaning

After stamping, parts may undergo deburring, brushing, tumbling, precision edge treatment, or other processes. The selected method depends on part geometry and the required edge condition. Cleaning removes oil, particles, and residues before plating or final assembly.

Plating and Secondary Operations

Depending on the specification, the parts may receive tin, nickel, silver, or another approved surface treatment. Additional operations may include insulation application, plastic carrier assembly, heat-shrink protection, laser marking, welding, or terminal preparation.

Final Inspection and Packaging

Finished parts are inspected according to the control plan. Typical checks include dimensions, hole position, bend angle, flatness, burr height, surface condition, plating thickness, coating adhesion, and electrical continuity where applicable.

Packaging should prevent deformation, scratching, contamination, and contact between surfaces that could damage the plating. Protective separators, trays, reels, cartons, or customized returnable packaging may be used according to product geometry and customer logistics requirements.

8. Manufacturing Equipment and Technical Strengths

Suzhou Shuangqisi Mold Equipment Co., Ltd. has developed an integrated manufacturing base for stamping dies, hardware parts, and stamping automation equipment. Its equipment resources include imported wire cutting machines, CNC machining centers, more than ten grinding machines of different sizes, and 25 punch presses ranging from 80 tons to 400 tons.

This range of equipment allows the company to support different die sizes, material thicknesses, forming requirements, and production volumes. Press capacity selection is important because insufficient capacity may cause unstable forming, while excessive capacity may reduce efficiency or increase operating cost.

The company has approximately 60 technical staff, including experienced mold designers, machinists, senior operators, and debugging personnel. Their combined experience supports die development, process adjustment, production troubleshooting, and customer-specific manufacturing requirements.

Integrated Die and Stamping Capability

A supplier that designs and builds its own stamping dies can coordinate tooling and production more efficiently. The die designer can directly consider production conditions, press availability, maintenance requirements, material feeding, part collection, and inspection methods. This reduces communication gaps between separate tooling and production suppliers.

Integrated capability is especially valuable for copper busbars because the part design, die structure, stamping conditions, plating requirements, and assembly interfaces are closely connected. Changes to one area may affect the others. A unified technical team can respond more quickly during development and trial production.

Automation Equipment Capability

Through its investment in Suzhou Keshuang Intelligent Technology Co., Ltd., the group also supports the development and production of stamping automation equipment. Automation can include coil feeding, straightening, transfer, robotic handling, visual inspection, stacking, counting, and packaging.

Automated equipment can reduce manual handling, improve cycle consistency, and support stable high-volume production. It may also reduce the risk of part mixing, incorrect orientation, and handling damage. For customers planning a new production line, integrated tooling and automation can provide a more coordinated solution.

Turnkey Project Support

The company can provide turnkey solutions involving stamping dies and stamping automation. This may include production equipment investment according to customer requirements. Such support can help customers that need to establish or expand an internal stamping line but do not want to coordinate multiple equipment and tooling suppliers.

A turnkey approach should begin with a detailed review of product drawings, annual demand, takt time, press capacity, material supply, automation level, inspection requirements, factory layout, and operator capability. The final solution can then be structured around the customer’s production and investment objectives.

9. Quality Control for Automotive Copper Busbars

Quality control for busbar stamping parts should be planned before production begins. Automotive customers typically require stable process documentation, clear inspection criteria, traceability, and corrective action procedures. Quality control should cover raw materials, tooling, stamping, surface treatment, assembly, and delivery.

Dimensional Inspection

Critical dimensions should be identified on the drawing and control plan. These may include overall length, width, thickness, hole diameter, hole position, terminal position, bend angle, forming height, flatness, and distance between connection points.

Inspection equipment may include coordinate measuring machines, optical projectors, profile measuring instruments, calipers, micrometers, gauges, and customized checking fixtures. The inspection method should be selected according to the tolerance and geometry of each feature.

Material and Surface Inspection

Material certificates should be reviewed for each incoming batch. Surface inspection checks for scratches, dents, discoloration, contamination, oxidation, cracks, and other defects. After plating, coating thickness and adhesion should be verified according to the agreed standard.

Plated contact areas require special attention because excessive coating variation may affect assembly dimensions or contact resistance. Critical surfaces should be protected during handling and packaging.

Process Control

Process control may include first-piece inspection, patrol inspection, regular sampling, die maintenance checks, and final inspection. Production parameters should be documented, and any adjustment should be recorded. Tool wear should be monitored because cutting edges and forming surfaces can gradually affect part quality.

Automotive Management Systems

The company’s stated quality commitments include compliance with IATF 16949, RoHS, and ISO-related requirements. IATF 16949 emphasizes risk-based thinking, process control, traceability, customer-specific requirements, and continuous improvement in automotive manufacturing.

RoHS-related compliance helps control restricted substances in electrical and electronic products. The exact compliance scope should be confirmed according to the customer’s market, product classification, and applicable regulatory requirements.

10. Product Advantages over Competitors

The competitive value of new energy vehicle copper busbar stamping parts is not determined only by copper material or press capacity. It depends on the supplier’s ability to combine engineering, tooling, production, surface treatment, automation, inspection, and service into a reliable manufacturing program.

Experience in New Energy Vehicle Applications

The company supplies molds and stamped products for new energy vehicles, servo drives, compressors, and other electrical applications. This experience provides familiarity with conductive components, compact assemblies, high-current requirements, and precision interfaces.

Automotive and electrical products often require more than basic metal forming. They must meet repeatability, cleanliness, surface, insulation, connection, and traceability expectations. Experience in related fields helps the technical team identify potential risks earlier in the project.

In-House Tooling Development

In-house die development enables faster technical communication and closer control of tooling quality. The company can manage design, machining, grinding, assembly, debugging, and modification within an integrated organization. This is an advantage when the part requires multiple revisions during sampling.

Flexible Production Capacity

The company operates punch presses from 80 tons to 400 tons. This range supports different part sizes and forming loads. Customers can select a production method suitable for prototype, low-volume, medium-volume, or mass-production requirements.

Flexible capacity is beneficial when a project changes during development. A component may begin with trial quantities and later require a higher-output progressive stamping process. A supplier with varied equipment and engineering resources can help manage this transition.

Combination of Manual Expertise and Automation

Experienced operators and debugging personnel remain important for die trials, process adjustment, and abnormal condition analysis. Automation then provides repeatability and productivity during stable production. Combining technical experience with automated equipment can be more effective than relying exclusively on either manual labor or automation.

Cost and Quality Coordination

Competitive pricing should be achieved through process optimization rather than uncontrolled material reduction or relaxed inspection. Material utilization, die life, press efficiency, automated handling, cycle time, rework, and packaging all affect the total cost of ownership.

The company emphasizes strict cost and quality control. This approach supports a balance between product reliability and customer budget. During quotation and process review, the supplier can evaluate the most suitable material, die structure, press type, plating method, and automation level.

Long-Term Technical Partnership

With approximately 15 years of experience in the mold industry, the company focuses on long-term customer relationships and value creation. A reliable supplier should provide technical assistance not only during initial tooling but also during production maintenance, engineering changes, capacity expansion, and quality improvement.

11. Design Considerations for Buyers

Customers purchasing copper busbar stamping parts should provide complete product information at the beginning of the project. The more clearly the application is defined, the more accurately the supplier can design the tooling and manufacturing process.

Electrical Requirements

Important electrical information includes continuous current, peak current, voltage level, allowable voltage drop, operating frequency if relevant, short-circuit conditions, contact resistance target, and expected service life. These factors influence material grade, cross-sectional area, contact design, and surface treatment.

Mechanical Requirements

Mechanical information should include mounting method, fastening torque, vibration level, shock conditions, insertion force, mating components, allowable deformation, and required dimensional tolerances. The busbar must be strong enough to remain stable while avoiding unnecessary material use.

Environmental Requirements

Customers should identify temperature range, humidity, salt exposure, chemical contact, dust, coolant exposure, thermal cycling, and other environmental conditions. These factors affect plating selection, insulation, packaging, and validation testing.

Production and Commercial Requirements

Annual demand, monthly demand, batch size, target cycle time, prototype schedule, mass-production date, packaging method, and delivery location should be defined. These requirements influence whether a progressive die, compound die, transfer process, or automated production line is most appropriate.

Inspection and Documentation

The customer should specify inspection standards, sampling plans, material certifications, dimensional reports, plating reports, process approval documents, and traceability expectations. Early agreement prevents misunderstandings during sample approval and mass production.

12. Application Development and Project Workflow

A professional project workflow helps convert an electrical concept into a stable stamped product. The following stages provide a practical structure for development.

Stage One: Requirement Confirmation

The supplier reviews the product drawing, application environment, material requirements, current rating, surface treatment, quantity, and delivery plan. Technical questions are recorded and resolved before tooling begins.

Stage Two: Manufacturing Feasibility

Engineers evaluate blank layout, forming sequence, die type, press capacity, material utilization, tolerances, burr control, and plating compatibility. If necessary, design suggestions are submitted for customer approval.

Stage Three: Tool Design and Manufacturing

The approved process is converted into detailed die drawings. Tool components are machined, ground, inspected, assembled, and prepared for trial production. High-risk features receive additional engineering attention.

Stage Four: Die Trial and Sample Approval

Trial stamping is performed using the specified copper material. Samples are measured and inspected. Die corrections are made until the parts meet the agreed requirements. The customer may review samples and inspection data before mass production approval.

Stage Five: Production Validation

A production validation run confirms that the die, press, feeding system, operator method, inspection plan, and packaging process work together. This stage helps identify issues that may not appear during a short trial.

Stage Six: Mass Production and Continuous Improvement

During mass production, the company monitors quality, output, tool condition, and material consumption. Improvement opportunities may include reducing scrap, increasing die life, improving automated handling, simplifying inspection, and reducing cycle time without compromising product performance.

13. Reliability in High-Voltage Vehicle Systems

High-voltage vehicle systems require careful control of conductive components because an electrical connection failure can affect safety, performance, and serviceability. Busbars must be integrated with insulation systems, protective covers, interlocks, fuses, connectors, and grounding structures.

The busbar itself should have stable dimensions and clean contact surfaces. Connection areas must be free from contamination that could increase contact resistance. Fasteners should be applied according to the specified torque, and the completed assembly should maintain appropriate clearance and creepage distances.

Mechanical vibration can gradually loosen connections or cause fatigue if the busbar is not adequately supported. The design should therefore consider mounting points, unsupported spans, bend locations, stress concentration, and the interaction between the busbar and its housing.

Thermal expansion can also affect the assembly. Copper and neighboring materials may expand at different rates during temperature changes. Flexible connection zones, suitable mounting clearance, and appropriate support structures may be required depending on the application.

These factors demonstrate why a busbar should not be treated as a simple flat metal part. It is a functional component within a complete electrical and mechanical system. Effective cooperation between the vehicle designer, busbar supplier, die manufacturer, plating provider, and assembly team is essential.

14. Sustainable and Efficient Manufacturing

New energy vehicles are designed to improve energy efficiency, and their components should also be produced using efficient manufacturing methods. Copper is valuable and recyclable, making material utilization an important consideration in busbar production.

Efficient strip layouts can reduce scrap generated during blanking and piercing. Engineering teams can optimize pitch, carrier width, part orientation, and nesting while maintaining die strength and part quality. Scrap copper from the stamping process can generally be collected and managed through appropriate recycling channels.

Automation can reduce repetitive manual handling and improve production consistency. Stable processes may also reduce rework, rejected parts, and unnecessary material consumption. Preventive die maintenance helps avoid sudden failures that could lead to extensive scrap or production interruption.

Surface treatment should also be controlled carefully. Applying the correct plating thickness and limiting plating to necessary areas can reduce chemical consumption and cost. Cleaning and wastewater management must follow applicable environmental requirements.

15. Why Choose an Integrated Stamping Partner?

Choosing an integrated stamping partner can simplify communication and reduce project risk. Instead of working separately with a die builder, stamping factory, automation supplier, and inspection provider, the customer can coordinate with one technical organization for the main manufacturing process.

Suzhou Shuangqisi Mold Equipment Co., Ltd. combines stamping die design, die manufacturing, hardware part production, and stamping automation equipment. This structure supports a coordinated response to product development, production capacity, line automation, and cost control requirements.

The company’s customer base includes Anter Group, Ousheng Electric, Dongbei Group, and Huichuan Technology, with products serving servo drives, compressors, and new energy vehicle applications. These industries require precision, reliability, and stable delivery, making them relevant to copper busbar development.

Its location in Suzhou, China, provides access to an established manufacturing region with strong industrial supply chains and engineering resources. The company’s facility at No. 118 Yexin Road, Wujiang Economic Development Zone, supports its mold and stamping operations.

For customers seeking a long-term manufacturing relationship, the value of an integrated supplier extends beyond the initial component. The supplier can assist with product optimization, die maintenance, process changes, production expansion, automation upgrades, and cost improvement throughout the product lifecycle.

16. Recommended Technical Specification Framework

When preparing a request for quotation or product approval, customers can use the following specification framework. The final values should always be confirmed according to the application and approved drawing.

Specification Category	Typical Considerations
Material	C11000, C10100, T2, or another approved high-purity copper grade
Copper content	Commonly at least 99.9%, subject to material standard
Dimensional accuracy	Approximately ±0.05 to ±0.20 mm for selected critical features
Current range	Approximately 30 to 2,000 A, depending on design and operating conditions
Temperature range	Approximately -40°C to 125°C, subject to system requirements
Surface treatment	Tin, nickel, silver, or another approved plating system
Plating thickness	Commonly approximately 3 to 5 micrometers when specified
Manufacturing process	Progressive, compound, transfer, or customized stamping and forming
Inspection	Dimensions, burrs, flatness, bend angle, surface, plating, and electrical characteristics
Compliance	IATF 16949, RoHS, ISO requirements, and customer-specific standards

17. Frequently Asked Questions

Q1: What copper materials are suitable for EV busbar stamping?

C11000, C10100, and T2 copper are common options. The selection depends on electrical conductivity, forming performance, mechanical requirements, surface treatment, material availability, and customer standards. High-purity copper with copper content of at least 99.9% is commonly considered for high-conductivity applications.

Q2: What current levels can these busbars support?

The product range can support approximately 30 to 2,000 A, depending on cross-sectional area, material thickness, length, temperature, cooling conditions, connection design, and allowable temperature rise. Current capacity should be verified through electrical and thermal engineering calculations or application testing.

Q3: Why are busbars used instead of traditional wires?

Busbars can provide a compact and direct current path, reduce wiring complexity, improve packaging, support heat dissipation, and enable repeatable automated assembly. They are especially useful in high-current battery and power electronic systems where space and connection reliability are important.

Q4: Can the busbar be manufactured in a three-dimensional shape?

Yes. Stamping dies can include bending, forming, embossing, and restriking operations to create three-dimensional geometries. The final design depends on material thickness, bend radius, forming height, tolerance, and the available press and tooling structure.

Q5: What surface treatments are available?

Tin, nickel, and silver plating are common options. A typical plating thickness may be approximately 3 to 5 micrometers, but the correct value depends on the electrical, environmental, mechanical, and regulatory requirements of the application.

Q6: How is burr quality controlled?

Burr quality is controlled through correct die clearance, sharp and properly maintained cutting edges, stable material support, accurate guiding, suitable press settings, and secondary deburring when required. Critical edges should be defined on the drawing and verified using an agreed inspection method.

Q7: What stamping die is best for high-volume busbar production?

A progressive die is often suitable for high-volume production from coil or strip material because it combines multiple operations and supports automatic feeding. However, compound or transfer dies may be more appropriate for particular part sizes, geometries, tolerances, or production volumes.

Q8: Can the supplier provide automation equipment?

Yes. The company also develops stamping automation equipment and can provide integrated solutions involving stamping dies, presses, feeding, transfer, handling, inspection, and production equipment investment according to customer requirements.

Q9: What information should be included in an inquiry?

An inquiry should include the product drawing or three-dimensional model, material grade and thickness, annual demand, current rating, surface treatment, dimensional tolerances, operating temperature, assembly method, inspection requirements, packaging requirements, and target delivery schedule.

Q10: How does the company support prototype and mass production?

The company can support engineering review, die design, machining, assembly, trial stamping, debugging, sample production, inspection, and mass-production preparation. Its range of punch presses and technical personnel allows the process to be adapted as the project develops from prototype to volume production.

Q11: Are these components suitable for battery pack applications?

Yes. Copper busbar stamping parts can be designed for battery cell interconnections, module connections, battery management assemblies, high-voltage junction boxes, and other battery-related conductive structures. The final design must meet the relevant electrical, mechanical, insulation, and environmental requirements.

Q12: How does plating affect electrical performance?

Plating can improve surface protection and contact stability while reducing the influence of oxidation or corrosion. The coating material and thickness must be selected carefully because excessive coating can affect dimensional fit, while inadequate coverage may not provide sufficient protection.

18. Conclusion

New energy vehicle copper busbar stamping parts are important components for the development of compact, efficient, and reliable electric vehicle power systems. Manufactured from high-purity copper such as C11000, C10100, or T2, they provide excellent electrical conductivity, thermal conductivity, and forming potential.

Compared with traditional wiring harnesses, stamped busbars can simplify current paths, reduce connection complexity, improve space utilization, support efficient heat dissipation, and deliver stable production quality. Their performance depends on much more than material selection. Precision die design, controlled forming, burr reduction, surface treatment, dimensional inspection, packaging, and application-specific validation are all essential.

Suzhou Shuangqisi Mold Equipment Co., Ltd. offers an integrated combination of stamping die design, mold manufacturing, hardware stamping, and automation equipment. With approximately 60 technical staff, imported wire cutting machines, CNC machining centers, multiple grinding machines, and 25 punch presses ranging from 80 tons to 400 tons, the company can support a variety of copper busbar development and production requirements.

Its experience in new energy vehicles, servo drives, compressors, and electrical products provides a practical foundation for precision conductive components. By combining experienced operators and debugging personnel with automated production capabilities, the company can offer customers a coordinated path from product concept and die design to validated production and long-term supply.

For vehicle manufacturers, battery companies, power electronics suppliers, and electrical system integrators, a reliable busbar stamping partner can contribute to product performance, manufacturing efficiency, and supply-chain stability. A properly engineered copper busbar is not simply a replacement for a wire. It is a carefully designed structural and electrical component that supports the future of high-voltage vehicle systems.

References

1. International Automotive Task Force. IATF 16949: Quality Management System Requirements for Automotive Production and Relevant Service Parts Organizations.

2. International Organization for Standardization. ISO 9001: Quality Management Systems—Requirements.

3. European Union. Restriction of Hazardous Substances Requirements for Electrical and Electronic Equipment.

4. ASTM International. Standard Specifications and Test Methods for Copper and Copper Alloy Sheet, Strip, and Electrical Conductive Materials.

5. Copper Development Association. Copper Electrical Conductivity, Thermal Performance, and Engineering Applications.

6. Society of Automotive Engineers. Automotive Electrical and Electronic Component Reliability Practices.

7. International Electrotechnical Commission. Requirements and Test Methods for Electrical Connections, Conductive Components, and High-Voltage Systems.

8. Metal Stamping Engineering Practice. Principles of Progressive Die Design, Clearance Selection, Forming Control, and Press Manufacturing.

Product: New energy vehicle copper busbar stamping parts
