Precision Progressive Die Stamping Parts for Small Automotive Mechanisms

Small automotive parts progressive die stamping parts are essential components for compact mechanical modules used throughout modern vehicles. Although these parts may appear simple from the outside, they often determine whether a door lock operates smoothly, a window regulator moves consistently, a seat adjustment system remains stable, or an auxiliary mechanism performs safely over thousands of cycles. In automotive manufacturing, small stamped parts must combine dimensional accuracy, material reliability, repeatable production quality, and cost efficiency. Progressive die stamping is one of the most effective manufacturing methods for achieving these goals at scale.

This article focuses on small automotive parts produced by progressive die stamping technology, with special attention to their material characteristics, structural advantages, manufacturing precision, application value, and supplier capabilities. It also explains how advanced die design, precision machining, automated stamping, strict inspection, and experienced engineering support create measurable advantages over ordinary stamped components. For automotive component manufacturers that require reliable small metal parts for door locks, window regulators, seat adjusters, compact transmission mechanisms, brackets, clips, connectors, and other auxiliary assemblies, these products provide a practical balance of accuracy, durability, production efficiency, and long-term performance.

Small automotive parts progressive die stamping parts

Understanding Small Automotive Progressive Die Stamping Parts

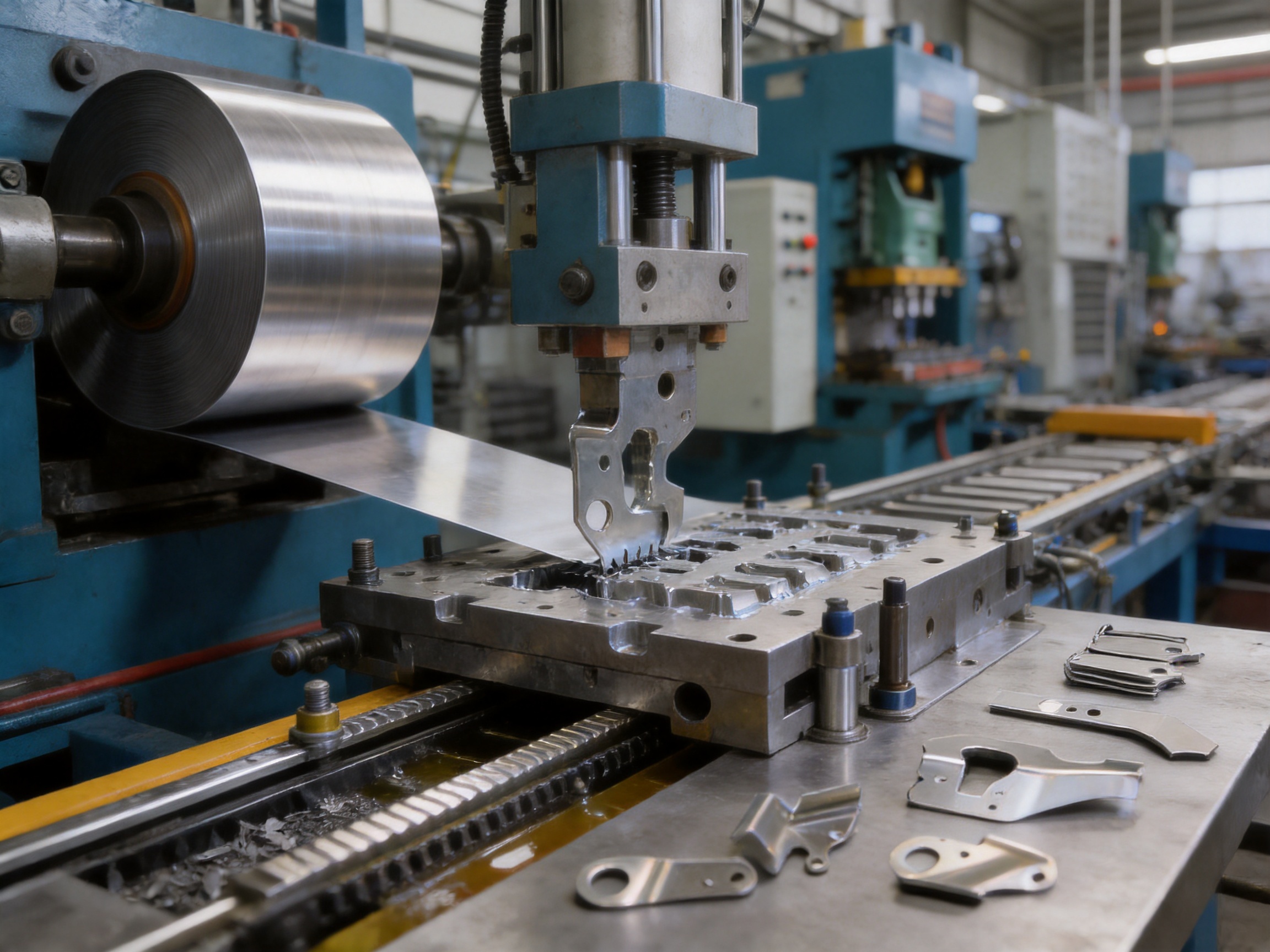

Small automotive progressive die stamping parts are metal components manufactured by feeding metal strip through a progressive die installed in a punch press. At each station inside the die, a specific operation is performed, such as piercing, blanking, bending, forming, embossing, trimming, notching, or coining. As the strip advances step by step, the part gradually takes shape until it is separated from the carrier strip at the final station. This process is highly suitable for high-volume automotive production because it produces consistent parts quickly and efficiently.

The product discussed here is designed mainly for automotive auxiliary systems and small mechanism modules. These applications typically require compact parts with tight tolerances, stable geometry, reliable surface quality, and resistance to wear or corrosion. Unlike large body stamping components, small mechanism parts frequently interact with springs, pins, gears, sliders, cables, motors, locking elements, or plastic housings. A minor deviation in hole position, bend angle, flatness, or edge condition can create assembly problems or functional instability. Therefore, the manufacturing process must be controlled from die design to final inspection.

Progressive die stamping offers a strong advantage because it integrates multiple forming steps into a continuous process. Compared with single-operation stamping, laser cutting followed by secondary bending, or manual assembly-intensive fabrication, progressive stamping reduces part-to-part variation and improves productivity. The progressive die itself functions as a precision production system. Once properly designed, manufactured, tested, and maintained, it can deliver stable quality across large production batches.

The parts are typically made from cold-rolled steel, aluminum alloy, or copper alloy, depending on functional requirements. Cold-rolled steel provides excellent strength, formability, dimensional stability, and cost efficiency. Aluminum alloy offers reduced weight and good corrosion resistance, making it suitable for lightweight automotive solutions. Copper alloy is preferred when electrical conductivity, elastic behavior, or special mechanical properties are needed. Material selection is not merely a purchasing decision; it affects stamping feasibility, springback, surface treatment, fatigue behavior, and final assembly performance.

Why Progressive Die Stamping Is Ideal for Small Automotive Parts

Automotive suppliers face constant pressure to improve quality while reducing cost and shortening delivery time. Small stamped parts often need to be produced in large quantities, sometimes with millions of pieces over the life of a vehicle platform. Progressive die stamping is ideal for this environment because it supports continuous production with high speed and high repeatability.

One of the core advantages is efficiency. A well-designed progressive die can complete several operations during each press stroke. This means one stroke may simultaneously pierce one area, form another area, bend a previously shaped section, and separate a completed part. As a result, cycle time is much shorter than producing the same part through multiple independent processes. This reduces labor input, handling time, work-in-process inventory, and risk of intermediate damage.

Another advantage is dimensional consistency. In progressive stamping, the strip is positioned by pilots, guide systems, die stations, and controlled feeding equipment. When the die is manufactured with high precision and the press is properly adjusted, each part follows the same forming sequence. This consistency is extremely important for automotive assemblies where parts must fit into automated assembly lines or precision plastic housings.

Progressive die stamping also improves cost control. Although the initial die investment may be higher than simple tooling, the cost per part becomes highly competitive in medium- and high-volume production. The process minimizes waste when strip layout is optimized, reduces the number of secondary operations, and enables stable mass production. For automotive buyers, this means predictable pricing and reliable supply.

The process is also compatible with quality assurance systems. Dimensional checks, material verification, surface inspection, and process monitoring can be integrated into production planning. Because parts are formed from continuous strip material, batch traceability can be maintained more effectively. When required, inspection data can be recorded for production control and customer approval.

Product Applications in Automotive Auxiliary Systems

Small progressive die stamping parts are widely used in automotive auxiliary systems. These systems may not always be visible to drivers, but they strongly affect comfort, safety, durability, and user experience. A door lock mechanism, for example, relies on multiple stamped parts to transfer motion, hold positions, guide movement, and maintain secure engagement. If one component deforms, wears prematurely, or deviates dimensionally, the lock may become noisy, stiff, unreliable, or difficult to assemble.

In window regulators, stamped parts may serve as brackets, guide plates, reinforcement pieces, cable connection elements, or small transmission components. They must withstand repeated movement, vibration, load changes, and environmental exposure inside the door cavity. Smooth edges, accurate hole positions, stable bend angles, and suitable surface protection are necessary to prevent friction, misalignment, or premature failure.

Seat adjusters also depend on small stamped components. Seat systems must meet strict strength and safety expectations because they affect occupant positioning and crash-related performance. Even small parts inside adjustment mechanisms need reliable mechanical properties and consistent dimensions. Progressive die stamping allows such parts to be produced with controlled geometry and repeatable strength characteristics.

Other applications include motor brackets, compact support plates, clips, lock plates, retainers, washers, levers, shielding pieces, electrical contact supports, sensor mounting elements, and small structural reinforcements. In new energy vehicles, stamped parts may also support battery-related auxiliary components, thermal management systems, lightweight mechanism modules, or compact electrical assemblies. As vehicles become more intelligent and electrified, the demand for precision small stamped components continues to grow.

Material Advantages: Cold-Rolled Steel, Aluminum Alloy, and Copper Alloy

Material selection is a central factor in the performance of small automotive stamped parts. The product can be produced from high-quality cold-rolled steel, aluminum alloy, or copper alloy, each offering distinct advantages. The correct choice depends on load conditions, required conductivity, corrosion environment, weight target, formability, surface treatment, and cost requirements.

Cold-rolled steel is widely used because it combines strength, dimensional stability, surface quality, and affordability. Its uniform thickness and smooth surface make it suitable for progressive die stamping. Cold-rolled steel can be formed into precise shapes while maintaining reliable mechanical strength. It can also receive zinc plating, electrophoretic coating, phosphating, oiling, or other surface treatments to improve corrosion resistance. For door locks, seat mechanisms, and reinforcement parts, cold-rolled steel is often a strong choice.

Aluminum alloy is valuable when weight reduction is important. Although small parts individually may not contribute much weight, a vehicle contains many small components, and cumulative weight savings can support fuel efficiency or electric vehicle range. Aluminum also offers natural corrosion resistance and good formability when properly selected and processed. However, aluminum has different springback behavior than steel, so die design and process compensation must be carefully engineered.

Copper alloy is used when electrical conductivity, elastic recovery, or special wear behavior is needed. Some automotive auxiliary systems include electrical functions, sensor connections, grounding elements, or conductive supports. Copper alloy stamped parts can provide both mechanical shape and electrical performance. Because copper alloys may be more expensive than steel, precise material utilization and strip layout optimization become especially important.

High-quality material sourcing and verification help ensure that each production batch performs as expected. Material thickness, tensile strength, hardness, elongation, surface condition, and coating status can all influence the stamping result. For small parts with tight tolerances, even slight changes in material behavior may affect springback or forming stability. Therefore, experienced manufacturers pay close attention to incoming material control and process adjustment.

Key Performance Characteristics of the Product

The main performance characteristics of small automotive progressive die stamping parts include dimensional accuracy, tight tolerance capability, smooth surface finish, mechanical durability, corrosion resistance, stable assembly performance, and long service life. These features are not independent; they support one another throughout the product life cycle.

Dimensional accuracy ensures that the part fits correctly with mating components. For example, a hole must align with a pin, a bend must match a housing contour, and a formed edge must avoid interference with adjacent moving parts. Progressive die manufacturing accuracy directly affects these dimensions. Precision wire cutting, CNC machining, grinding, and die assembly are essential for maintaining the required geometry.

Tight tolerance capability is especially important for small mechanism parts. A part may have several functional features in a compact area. If tolerances accumulate negatively, the assembly may become too loose, too tight, noisy, or unstable. Progressive die stamping can control such features effectively when the die is properly designed and maintained.

Smooth surface finish contributes to both appearance and function. Burr height, scratch control, edge quality, and surface cleanliness affect assembly, sliding behavior, coating adhesion, and safety. In mechanisms with repeated motion, rough edges can accelerate wear or damage plastic parts, cables, or rubber elements. Well-controlled stamping and post-processing reduce these risks.

Mechanical durability is achieved through proper material selection, forming design, and process control. Parts used in door locks or seat adjusters must endure repeated loads and vibration. If forming creates cracks, excessive thinning, or residual stress concentration, the part may fail prematurely. Advanced die design helps distribute forming strain and maintain stable mechanical properties.

Corrosion resistance is necessary because automotive components may be exposed to humidity, temperature changes, road salt, condensation, and chemical residues. Material choice and surface treatment work together to protect the part. For internal mechanism parts, corrosion resistance also helps maintain smooth operation over the vehicle’s service life.

Comparison with Alternative Manufacturing Methods

Small metal parts can be made by several methods, including laser cutting, CNC machining, simple blanking, casting, manual fabrication, or multi-step stamping. However, progressive die stamping offers a superior solution for many automotive applications, especially when production volume and repeatability are important.

Laser cutting provides flexibility for prototypes and low-volume production, but it is usually slower and more expensive per piece for high-volume parts. It may also require secondary bending, deburring, and handling. For parts with complex formed features, laser cutting alone cannot replace progressive stamping.

CNC machining can achieve excellent precision, but it is not cost-effective for thin sheet metal parts in mass production. Machining removes material rather than forming it, which may increase waste and processing time. It is better suited for thicker, three-dimensional, or low-volume precision components.

Single-operation stamping may be economical for simple parts, but it often requires multiple tools, manual transfers, or several press operations for complex shapes. This increases handling time and part variation. Progressive stamping integrates operations into one tool, improving repeatability and productivity.

Casting is not typically suitable for thin, small, high-precision sheet metal mechanism parts. It may introduce porosity, dimensional variation, or surface limitations. For many automotive mechanism components, stamped sheet metal provides better strength-to-thickness performance and more consistent geometry.

Manual fabrication lacks the repeatability and efficiency required by automotive production. While it may be useful for samples or repairs, it cannot meet the stable quality and cost targets expected in mass manufacturing.

Manufacturing Method	Best Use Scenario	Limitations for Small Automotive Mechanism Parts	Progressive Die Stamping Advantage
Laser Cutting and Secondary Bending	Prototype or low-volume production	Higher unit cost, slower cycle time, more handling, possible variation after bending	Higher speed, integrated forming, lower cost in batch production
CNC Machining	Thick or complex precision components	Material waste, longer machining time, high cost for thin sheet parts	Efficient forming of thin metal strip with repeatable geometry
Single-Operation Stamping	Simple parts with limited forming steps	Multiple tools or transfers may be required for complex parts	Multiple operations completed in one progressive die
Casting	Bulkier three-dimensional shapes	Less suitable for thin, precise sheet components	Better for thin, strong, accurate mechanism parts
Manual Fabrication	Samples, repairs, or very small quantities	Poor repeatability and low productivity	Stable mass production with controlled tolerances

Manufacturing Strengths Behind High-Quality Stamped Parts

A high-quality stamped part is not created by the press alone. It depends on the complete manufacturing system behind the product. The company producing these parts has strong capabilities in stamping die design, mold manufacturing, hardware stamping, and stamping automation. This integrated capability is a major advantage because it allows the manufacturer to control the process from product analysis and die design to tooling production, trial stamping, mass production, and quality inspection.

The manufacturing facility is equipped with imported wire cutting machines, CNC machining centers, more than ten grinding machines of various sizes, and twenty-five punch presses ranging from 80 tons to 400 tons. This equipment base supports precision tooling and production flexibility. Wire cutting is important for producing complex die inserts, punches, and profiles with accurate geometry. CNC machining centers support mold bases, plates, cavities, and structural components. Grinding machines help achieve flatness, parallelism, and surface precision. Punch presses of different capacities allow the manufacturer to choose suitable tonnage for different part sizes, material thicknesses, and forming requirements.

The company also has a technical team of about sixty staff members. Experienced engineers, senior operators, and debugging personnel are valuable assets in progressive die stamping because many production challenges require practical knowledge. For example, controlling springback, preventing burr growth, improving feeding stability, reducing tool wear, and solving forming cracks all require a combination of theoretical understanding and shop-floor experience.

Another strength is the ability to provide turnkey solutions for stamping dies and stamping automation. This means customers can receive not only stamped parts but also process planning, die development, automation integration, and production support. For customers seeking stable long-term supply, such integration reduces communication barriers and helps solve problems faster.

The company’s experience serving customers in servo drives, compressors, and new energy vehicles further demonstrates its capability in precision metal forming. These industries require stable quality, cost control, and technical responsiveness. The experience gained from such applications can be applied to automotive small parts, especially those requiring reliable performance in compact mechanical and electromechanical systems.

Advanced Die Design and Engineering

Progressive die design is the technical foundation of the product. A progressive die must transform flat strip material into a finished three-dimensional part through a sequence of controlled operations. Each station must be designed to avoid excessive strain, misalignment, distortion, and interference. Strip layout, carrier design, pilot positioning, forming sequence, cutting clearance, bending compensation, material flow, and scrap removal must all be considered.

For small automotive parts, die design often begins with a detailed analysis of the part drawing and application requirements. Engineers evaluate the material, thickness, tolerances, functional surfaces, critical holes, bend radii, burr direction, coating requirements, and assembly conditions. If a feature is difficult to stamp reliably, design-for-manufacturing suggestions may be proposed. Such early engineering cooperation can reduce tooling risk and improve final part stability.

Strip layout optimization is important for both cost and quality. A good layout reduces material waste while maintaining sufficient carrier strength and feeding stability. It also determines how the part is positioned during each operation. Poor layout can cause strip deformation, feeding errors, unstable forming, or excessive scrap. For expensive materials such as copper alloy, material utilization is especially significant.

Cutting clearance is another critical factor. If clearance is too small, tool wear increases and burrs may become unstable. If clearance is too large, edges may tear or become inaccurate. Proper clearance depends on material type, thickness, hardness, and edge requirements. For automotive mechanism parts, burr direction may also be specified to protect mating components.

Bending and forming stations require careful compensation for springback. Different materials return elastically after forming, and the amount of springback depends on material strength, thickness, bend radius, and forming angle. Engineers may adjust die angles, add coining features, modify forming sequence, or use restriking stations to achieve final dimensional accuracy.

Progressive die design also includes maintenance considerations. Inserts, punches, and wear components should be replaceable where possible. A maintainable die reduces downtime and supports long production life. For automotive batch production, tooling durability is a major contributor to stable supply.

Precision Machining and Tooling Capability

After the die is designed, precision machining determines whether the design can be realized accurately. The manufacturing process uses wire cutting, CNC machining, grinding, fitting, assembly, and debugging. Each step affects final part quality.

Wire cutting is used for high-precision profiles, punch shapes, die openings, and complex contours. In progressive dies, punch and die clearance may be very small, so accurate cutting is essential. Imported wire cutting machines provide stable accuracy and surface quality for tooling components.

CNC machining centers are used for mold plates, pockets, mounting features, and complex structural parts. CNC machining allows high repeatability and efficient production of mold components according to digital design data. It also supports modifications during die development.

Grinding is vital for flatness and precision fits. Progressive dies contain many plates and inserts that must align accurately. If surfaces are not flat or parallel, cutting clearance, forming height, and guiding accuracy may be affected. Grinding capability supports the stability of the entire die structure.

Skilled assembly and fitting remain essential even with advanced machines. Toolmakers must understand how each component interacts, how guiding systems align, how punches enter die openings, how strip material flows, and how scrap exits. Experienced mold technicians can detect and correct potential problems before production begins.

Debugging is where engineering and practical stamping knowledge come together. During trial stamping, engineers inspect sample parts, measure dimensions, observe strip movement, check burrs, evaluate forming stability, and adjust the die if necessary. Adjustments may include modifying clearances, polishing forming surfaces, changing spring pressure, improving scrap removal, or refining feeding parameters. This process ensures that the die can produce stable parts before mass production.

Stamping Production with Presses from 80T to 400T

The availability of twenty-five punch presses ranging from 80 tons to 400 tons gives the manufacturer flexibility in matching equipment to product requirements. Small parts may not always require high tonnage, but certain materials, thicknesses, or forming operations may demand greater press capacity. Choosing the correct press helps ensure stable forming and protects the die from overload.

Press selection considers total cutting force, forming force, stripping force, die size, shut height, stroke length, feeding speed, and production volume. If the press is too small, it may cause unstable production, accelerated wear, or safety risks. If the press is unnecessarily large, production cost may increase. A broad press range allows optimized production planning.

Progressive stamping also requires stable feeding equipment. The metal strip must advance accurately from station to station. Feeding errors can damage the die or create defective parts. In well-controlled production, coil feeding, straightening, lubrication, pilot engagement, and press timing are coordinated. Automation equipment can improve feeding consistency and reduce manual intervention.

During production, operators monitor part quality, press operation, strip feeding, scrap removal, lubrication, and tooling condition. Regular inspections help detect trends before defects become widespread. Tool maintenance, sharpening, cleaning, and replacement of wear parts are part of stable production management.

High-volume automotive stamping requires both speed and discipline. It is not enough to produce parts quickly; the process must produce good parts consistently. The combination of suitable presses, precision dies, trained operators, and inspection systems supports reliable batch production.

Automation and Turnkey Stamping Solutions

The company’s investment in stamping automation capability is a significant advantage. In modern manufacturing, automation is not only about reducing labor; it is about improving consistency, safety, traceability, and production efficiency. Automated feeding, material handling, part collection, inspection support, and integrated production equipment can reduce human error and support stable output.

For customers, turnkey solutions can be especially valuable. A turnkey approach may include product manufacturability analysis, die design, die manufacturing, press selection, automation planning, trial production, process optimization, and batch production. Instead of coordinating multiple suppliers for tooling, stamping, and automation, customers can work with one integrated manufacturing partner.

This integration improves communication and shortens problem-solving cycles. If a part dimension is unstable, the tooling team, stamping team, and automation team can work together to identify the cause. The issue might involve die clearance, feeding accuracy, material variation, press setting, or part ejection. An integrated manufacturer can analyze the whole system rather than blaming separate suppliers.

Automation also supports cost-effective production. Stable automatic feeding reduces downtime and improves material utilization. Automated collection and handling reduce deformation or scratches after stamping. In some cases, inspection devices or sensors can be integrated to detect feeding errors, misfeeds, or abnormal conditions. These measures help prevent tool damage and reduce defective output.

For automotive part manufacturers, stable supply is as important as technical capability. A supplier with both die-making and automation capability is better positioned to support long-term projects, engineering changes, capacity expansion, and continuous improvement.

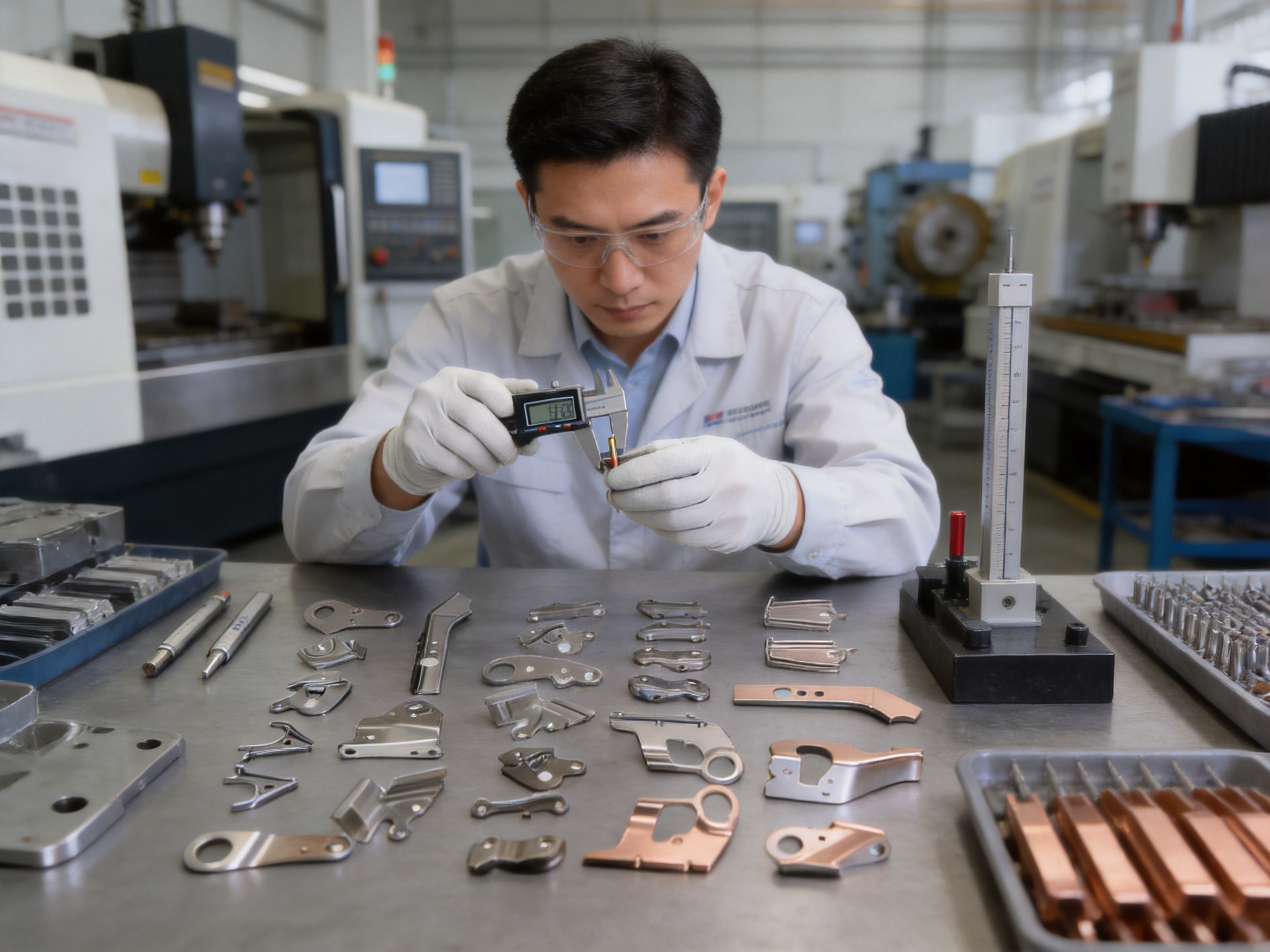

Quality Control and Inspection

Automotive stamped parts must meet strict quality expectations. The production process includes dimensional inspection and material performance verification for each batch. This ensures that parts conform to drawings, functional requirements, and customer specifications.

Dimensional inspection may include measurements of length, width, hole diameter, hole position, bend angle, flatness, height, thickness, and critical formed features. Depending on the part, inspection tools may include calipers, micrometers, height gauges, pin gauges, profile projectors, coordinate measuring machines, customized checking fixtures, or optical measurement systems. For mass production, dedicated gauges are often used to quickly verify key dimensions.

Material performance verification helps confirm that the raw material meets requirements. Tensile strength, hardness, thickness, surface condition, and coating status may be checked according to customer needs. Material certificates and batch traceability can support quality documentation.

Surface inspection is also important. Inspectors may check for burrs, cracks, scratches, dents, rust, deformation, oil contamination, and plating defects. For mechanism parts, burr control is especially important because burrs can affect assembly, movement, and wear. Edge quality may be controlled through proper tooling clearance, tool maintenance, deburring, or secondary finishing if required.

Process control is another important aspect of quality. Stable production depends on maintaining press settings, feeding accuracy, lubrication, die condition, and inspection frequency. If a process trend changes, corrective action should be taken before nonconforming parts are produced in large quantities.

Quality control is not only a final inspection activity. It begins with drawing review, material selection, die design, tooling precision, trial production, and operator training. This full-process approach is one reason progressive die stamped parts can deliver reliable performance in automotive applications.

Advantages Over Competitors

The competitive advantages of these small automotive progressive die stamping parts come from the combination of product performance, manufacturing integration, engineering experience, equipment capability, and cost control. Many suppliers may offer simple stamping services, but fewer can provide a complete system that includes precision die design, die manufacturing, stamping production, automation equipment, debugging, and long-term technical support.

First, the product offers strong dimensional stability. Advanced progressive die technology enables consistent dimensions across batch production. For customers assembling parts into compact automotive modules, this reduces assembly problems, line stoppages, and rework.

Second, the parts can be made from multiple material options. Cold-rolled steel, aluminum alloy, and copper alloy allow customers to choose the best balance of strength, weight, corrosion resistance, conductivity, and cost. This flexibility supports a wide range of automotive applications.

Third, smooth surface finish and controlled edge quality help improve mechanism performance. Parts used in door locks, window regulators, and seat adjusters often experience repeated movement. Clean edges and accurate forms reduce friction, noise, and wear.

Fourth, the manufacturer’s tooling capability supports customization. Automotive customers frequently require parts designed for specific mechanisms. With in-house die design and manufacturing, custom designs can be developed and optimized more efficiently.

Fifth, equipment resources improve production reliability. Imported wire cutting machines, CNC machining centers, grinding equipment, and presses from 80T to 400T provide the technical foundation for accurate tooling and flexible stamping production.

Sixth, experienced technical staff and senior debugging personnel reduce project risk. Progressive die development can involve complex forming challenges. Experienced engineers can identify problems early, propose solutions, and stabilize production faster than less experienced suppliers.

Seventh, integrated automation capability creates a long-term advantage. Stamping automation improves productivity and consistency while reducing handling errors. Customers seeking cost-effective mass production benefit from a supplier that understands both tooling and automation.

Eighth, strict cost and quality control support competitive pricing without sacrificing reliability. Automotive customers need dependable parts at reasonable cost. Efficient internal manufacturing, optimized material usage, and stable production processes help achieve this balance.

Design Considerations for Automotive Customers

Customers who need small progressive die stamping parts can improve project outcomes by considering manufacturability early in the design phase. Several design factors influence stamping feasibility, tooling cost, part quality, and production stability.

Material thickness should match the required strength and forming conditions. Excessively thin material may deform under load, while overly thick material may increase forming force and cost. Bend radius should be compatible with the material to avoid cracking. Hole-to-edge distance should be sufficient to prevent distortion or weak sections. Very narrow features may be difficult to stamp reliably, especially in high-strength material.

Tolerance requirements should be defined according to functional needs. Overly tight tolerances on noncritical features can increase tooling complexity and cost. Critical dimensions, however, should be clearly identified so the die can be designed to control them effectively.

Burr direction should be considered. In many stamped parts, one side of the cut edge may have a burr. If the part contacts plastic, cables, seals, or sliding surfaces, burr direction can affect performance. Specifying burr direction helps the tooling engineer design the layout correctly.

Surface treatment requirements should be planned with the stamping process. Plating, coating, oiling, or other treatments may affect dimensions, friction, corrosion resistance, and assembly. If parts are plated after stamping, coating thickness and coverage should be considered. If pre-plated material is stamped, tooling must protect the coating from damage where possible.

Packaging is also important for small precision parts. Thin stamped parts can become tangled, scratched, bent, or contaminated if not packed properly. Customized packaging, trays, bags, separators, or bulk handling methods may be selected according to part shape and customer assembly requirements.

Reliability in Automotive Operating Environments

Automotive components must function under challenging conditions. Temperature changes, vibration, humidity, dust, road salt, oil mist, and repeated mechanical movement can all affect part performance. Even small stamped parts must be designed and manufactured for these environments.

Door lock components may operate in cold winters, hot summers, and humid conditions inside the door structure. They must resist corrosion and maintain stable movement. Window regulator parts may experience repeated loading when the window moves up and down. Seat adjuster parts may carry higher mechanical loads and must remain stable over many cycles.

Reliable stamped parts support the overall durability of these systems. Accurate geometry ensures proper load transfer. Strong material prevents deformation. Good surface finish reduces friction and wear. Corrosion resistance prevents rust-related sticking or weakening. Consistent batch quality ensures that every vehicle receives parts with the same functional reliability.

Long service life is achieved through the combination of design, material, tooling, and process control. A part that looks correct immediately after stamping may still fail if material properties are unsuitable or forming strain is excessive. Therefore, professional manufacturing must consider both immediate dimensions and long-term performance.

Supporting Batch Production with Stable Quality

Batch production is a key requirement for automotive suppliers. Once a vehicle program enters mass production, component supply must be stable in quantity, quality, and delivery. Progressive die stamping supports this need because it is designed for continuous, repeatable production.

The product supports batch production with high efficiency and stable quality. This is valuable for automotive part manufacturers because it helps maintain assembly line continuity. Delays or quality fluctuations in small parts can disrupt larger assemblies and create unnecessary cost. A stable stamping supplier reduces this risk.

Stable batch production depends on tooling life, equipment maintenance, operator training, material control, and quality inspection. The manufacturing system must be able to repeat the same process day after day. Preventive maintenance of dies and presses helps avoid unexpected downtime. Tool sharpening and replacement schedules help maintain edge quality. Incoming material checks prevent unsuitable material from entering production.

Production planning also matters. For high-volume parts, coil material, press availability, inspection capacity, packaging, and logistics must be coordinated. An experienced stamping manufacturer can manage these factors and respond to customer demand changes.

Customization and Engineering Support

Automotive mechanism parts are often customized. Each customer may have unique assembly structures, load requirements, tolerances, materials, and surface treatments. The ability to customize parts and tooling is therefore essential.

Engineering support may begin with customer drawings, samples, or application requirements. The manufacturer can review the design, assess stamping feasibility, recommend material options, identify high-risk features, and propose improvements. This collaboration helps reduce development time and avoid costly tool modifications later.

Prototype or trial production may be used to verify design assumptions. After sample approval, progressive dies can be refined for mass production. During this phase, the supplier’s debugging experience becomes valuable. Adjustments may be required to ensure stable part dimensions, burr control, forming accuracy, and feeding reliability.

Customization can also include packaging, inspection standards, surface treatment coordination, and production documentation. Automotive customers may require specific reporting formats, batch labels, material certificates, or inspection records. A professional supplier can support these requirements as part of the production service.

Role in New Energy and Intelligent Vehicles

The automotive industry is moving toward electrification, intelligence, lightweight design, and higher comfort standards. These trends increase the demand for precision small stamped parts. New energy vehicles include battery systems, motor controllers, power electronics, thermal management modules, sensors, actuators, and compact mechanical assemblies. Many of these systems require metal brackets, conductive pieces, shielding parts, clips, retainers, and small support structures.

Progressive die stamping is well suited to these needs because it can produce high volumes of accurate parts with stable cost. Copper alloy parts may be used for conductive functions, while aluminum alloy supports lightweight design. Cold-rolled steel remains important for strength and cost efficiency. The ability to process different materials gives manufacturers flexibility as vehicle designs evolve.

Intelligent vehicles also rely on sensors and actuators integrated into traditional systems such as doors, seats, windows, mirrors, and locks. These systems often require compact metal parts that must fit precisely into electromechanical assemblies. Progressive die stamped parts help meet these compact design requirements.

Sustainability and Manufacturing Efficiency

Efficient stamping production also contributes to sustainability. Material utilization can be optimized through strip layout design, reducing scrap. High-speed production reduces energy consumption per part compared with slower multi-step methods. Durable tooling supports long production runs and reduces waste from unstable processes.

Lightweight material options such as aluminum alloy can support vehicle efficiency goals. Reliable small parts also reduce failure rates, warranty issues, and replacement waste. In modern manufacturing, sustainability is closely connected to quality and process stability. Producing correct parts efficiently is one of the most practical ways to reduce unnecessary resource consumption.

Automation can further improve efficiency by reducing handling damage, stabilizing production rhythm, and improving workplace safety. Integrated stamping automation supports cleaner, more organized, and more predictable production environments.

Q&A Section

What are small automotive progressive die stamping parts?

They are precision metal components produced from strip material through a progressive die stamping process. The strip passes through multiple die stations, and each station performs operations such as cutting, piercing, bending, forming, or trimming until the finished part is completed.

Where are these parts commonly used?

They are commonly used in automotive door locks, window regulators, seat adjusters, compact transmission mechanisms, brackets, clips, retainers, support plates, and other small auxiliary modules that require accurate and durable metal components.

What materials can be used?

Typical material options include cold-rolled steel, aluminum alloy, and copper alloy. Cold-rolled steel offers strength and cost efficiency, aluminum alloy supports lightweight and corrosion-resistant designs, and copper alloy is suitable for conductive or special mechanical applications.

Why is progressive die stamping better for high-volume automotive parts?

Progressive die stamping combines multiple forming steps into one continuous process. This improves production speed, reduces handling, improves dimensional consistency, lowers unit cost in mass production, and supports stable quality across large batches.

How do these parts improve automotive mechanism performance?

Accurate dimensions, smooth edges, stable bend angles, and reliable material properties help mechanisms assemble correctly and operate smoothly. This reduces noise, friction, wear, misalignment, and premature failure in moving automotive systems.

What makes the manufacturing process reliable?

Reliable production depends on advanced die design, precision machining, suitable press equipment, controlled feeding, experienced debugging, material verification, dimensional inspection, and regular tooling maintenance.

Can the parts be customized?

Yes. The parts can be customized according to customer drawings, samples, materials, thicknesses, tolerances, surface treatments, burr direction, packaging methods, and application requirements.

What inspection steps are used?

Inspection may include dimensional measurement, material performance verification, surface inspection, burr control, functional checks, and batch traceability. Critical dimensions can be controlled with dedicated gauges or precision measuring equipment.

Why is in-house die design important?

In-house die design allows better control of manufacturability, tooling quality, development speed, and technical problem solving. It also helps optimize material utilization, forming sequence, tolerance control, and long-term tool maintenance.

How does stamping automation benefit customers?

Stamping automation improves feeding consistency, reduces manual handling, increases productivity, lowers the risk of damage, supports stable batch production, and helps reduce total manufacturing cost.

Conclusion

Small automotive parts progressive die stamping parts play an important role in the reliability, comfort, and performance of modern vehicles. Whether used in door locks, window regulators, seat adjusters, or other auxiliary mechanisms, these components must meet strict requirements for accuracy, durability, surface quality, and production consistency. Progressive die stamping provides an efficient and reliable way to manufacture such parts in large quantities while maintaining stable quality.

The product’s advantages include tight tolerances, consistent dimensions, smooth surface finishes, reliable durability, corrosion resistance, and compatibility with cold-rolled steel, aluminum alloy, and copper alloy. These features allow the parts to meet diverse automotive application needs. Compared with laser cutting, CNC machining, single-operation stamping, casting, or manual fabrication, progressive die stamping offers superior efficiency and repeatability for mass production.

The manufacturing strength behind the product further increases its value. Advanced wire cutting machines, CNC machining centers, grinding equipment, and punch presses from 80T to 400T support precision tooling and flexible production. Experienced technical staff and debugging personnel help solve complex forming challenges and stabilize production. Integrated capabilities in stamping dies, stamping parts, and stamping automation provide customers with a complete solution from design to batch production.

For automotive part manufacturers seeking cost-effective, reliable, and customizable small stamped components, progressive die stamping parts offer a strong technical and commercial choice. Their stable quality supports efficient assembly, long service life, and dependable vehicle performance. As automotive systems continue to become more compact, intelligent, and electrified, the importance of precision small stamped components will continue to grow.

References

1. Kalpakjian, S., and Schmid, S. R. Manufacturing Engineering and Technology. Pearson Education.

2. Lange, K. Handbook of Metal Forming. Society of Manufacturing Engineers.

3. Altan, T., and Tekkaya, A. E. Sheet Metal Forming: Processes and Applications. ASM International.

4. Society of Automotive Engineers. Automotive Sheet Metal Forming and Stamping Process Guidelines.

5. ASM International. Metals Handbook: Forming and Forging.

6. Boljanovic, V. Sheet Metal Forming Processes and Die Design. Industrial Press.
