Precision Copper Busbar Stamping Parts for New Energy Vehicles

New energy vehicles depend on efficient, reliable, and compact electrical power distribution. As battery capacity, charging speed, drive-system output, and electronic control requirements continue to increase, the internal electrical architecture of electric vehicles must carry higher currents while occupying less space. New energy vehicle copper busbar stamping parts provide a practical solution for this challenge. These precision-formed conductive components create low-resistance pathways between battery packs, battery management systems, drive motors, inverters, DC/DC converters, charging units, fuse boxes, and other high-voltage electrical modules.

Unlike conventional wiring harnesses that rely on multiple cables, connectors, terminals, and protective sleeves, stamped copper busbars are engineered as rigid or semi-rigid conductive structures. Their geometry can be customized to match the available installation space, the required current rating, and the connection design of the vehicle platform. This allows designers to improve packaging efficiency, reduce unnecessary connection points, simplify assembly, and achieve stable electrical performance.

Suzhou Shuangqisi Mold Equipment Co., Ltd. provides copper busbar stamping parts together with die design, die manufacturing, stamping production, and automation support. Its integrated capabilities allow the company to manage the product development process from initial part review through tooling, trial production, process debugging, mass production, and delivery. This combination of mold engineering and stamping manufacturing is particularly valuable for automotive customers that require repeatable quality, rapid process adjustment, and cost-effective production.

New energy vehicle copper busbar stamping parts

What Are New Energy Vehicle Copper Busbar Stamping Parts?

A copper busbar stamping part is a conductive metal component manufactured from copper sheet or strip through one or more stamping operations. Depending on the product design, the manufacturing sequence may include blanking, piercing, bending, forming, embossing, flattening, coining, trimming, and other precision operations. The finished part may include mounting holes, connection tabs, stepped sections, bend radii, locating features, and protective surface treatments.

In a new energy vehicle, a busbar normally functions as an electrical bridge or distribution path. It may connect battery cells within a battery module, link modules to a high-voltage junction box, connect a battery pack with an inverter, or distribute power to auxiliary systems. Some busbars are designed for direct bolted connections, while others include terminals, threaded features, welded interfaces, or integrated insulation structures.

The material commonly used for these components includes high-purity copper grades such as C11000, C10100, or T2 copper. These materials offer a useful combination of electrical conductivity, thermal conductivity, formability, and corrosion resistance. Copper content may reach or exceed 99.9%, supporting conductivity values of up to approximately 59.6 megasiemens per meter, depending on the selected grade, material condition, and applicable test method.

Busbars may be manufactured in flat, bent, laminated, stepped, or three-dimensional configurations. A flat design may be suitable for a battery distribution plate, while a multi-level part may be required to route current around cooling channels, structural members, sensors, or other electrical components. The ability to stamp complex geometries makes copper busbars adaptable to modern vehicle platforms where installation space is limited.

Why Copper Busbars Are Important in Electric Vehicle Electrical Systems

Electric vehicles place demanding requirements on current transmission. A high-voltage battery can supply substantial current to the traction inverter and motor. During acceleration, regenerative braking, fast charging, and other high-load conditions, the electrical interconnection system must maintain stable conductivity and control heat generation. Any unnecessary electrical resistance may produce energy loss, temperature rise, and reduced system efficiency.

Copper has excellent electrical conductivity, making it suitable for high-current applications. A properly designed copper busbar can transmit power with low resistance while providing a predictable current path. Because the busbar is formed into a defined shape, engineers can control its length, cross-sectional area, connection location, and support points more precisely than with an improvised collection of cables.

Thermal performance is another important benefit. Copper has thermal conductivity of approximately 385 watts per meter-kelvin, allowing heat to spread along the conductor and transfer toward surrounding structures or dedicated cooling elements. In a correctly engineered assembly, this can help reduce localized hot spots and support stable operation under repeated load cycles.

Busbars also contribute to mechanical organization. A wire harness may require multiple cables to be routed, bundled, clipped, and protected. A stamped busbar can follow a planned path and be secured using a smaller number of mounting features. This improves the clarity of the electrical assembly and may reduce installation time during vehicle production.

For high-voltage applications, electrical insulation and safety are essential. Copper busbars can be combined with insulation films, plastic carriers, injection-molded supports, heat-shrinkable materials, or other protective solutions. The stamped metal component itself can be designed with controlled edge quality, suitable clearance, and accurate hole locations to support safe integration into the final assembly.

Advantages Over Conventional Wiring Harnesses

Lower Electrical Resistance

A copper busbar provides a direct conductive path with fewer intermediate interfaces than a cable system assembled from multiple wire sections and terminals. When the cross-sectional area and connection design are correctly selected, the busbar can help reduce voltage drop and resistive power loss. This is particularly useful in high-current battery and drive-system circuits.

Improved Space Utilization

Vehicle packaging is becoming more compact as battery packs, power electronics, thermal management systems, and electronic control units are integrated into smaller spaces. A busbar can be bent or formed to follow a three-dimensional route around structural components. This design flexibility can create a more compact electrical assembly than a bundle of cables with minimum bend-radius requirements.

Reduced Assembly Complexity

A stamped component can combine several functions into one part. For example, a single busbar may include a conductive route, mounting holes, positioning features, and connection tabs. By reducing the number of separate wires, terminals, fasteners, and support components, the design may simplify assembly and reduce the opportunities for incorrect routing or connection.

Stable Mechanical Performance

Because copper busbars are rigid or semi-rigid, they are less dependent on flexible cable routing. Their defined shape can help maintain consistent spacing and connection alignment. When properly supported, they can withstand vehicle vibration and repeated thermal expansion and contraction. Product designs may be developed for operating conditions ranging from approximately -40°C to 125°C, subject to the complete material, insulation, plating, and assembly specification.

Efficient High-Current Transmission

The product range can be designed for current-carrying requirements from approximately 30 amperes to 2,000 amperes, depending on the conductor thickness, width, geometry, cooling conditions, installation environment, and customer requirements. This broad range allows busbar solutions to be used in low- to high-power circuits throughout an electric vehicle.

More Consistent Production

Progressive dies, compound dies, and precision forming tools enable repeatable production of complex copper parts. Once the tooling and process parameters have been validated, large quantities of components can be manufactured with stable geometry. This repeatability is a significant advantage over manually shaped or manually assembled conductive components.

Material Selection for Copper Busbar Stamping

Material selection directly affects electrical performance, forming behavior, durability, and cost. C11000 copper is widely recognized for its high conductivity and good forming characteristics. C10100 may be selected where very high conductivity and low impurity levels are important. T2 copper is another common industrial choice because it balances conductivity, availability, and manufacturability.

The required material thickness depends on the current load, allowed temperature rise, available installation space, mechanical strength, and forming geometry. A thicker strip may support higher current and greater mechanical rigidity, but it may require more powerful stamping equipment and more carefully designed bending operations. A thinner strip can reduce weight and material cost, but the design must ensure adequate current capacity and resistance to vibration.

Material temper and hardness also influence the stamping process. Softer copper is generally easier to form but may require additional support to prevent deformation during handling. Harder material may provide greater stiffness but can increase the risk of cracking at tight bends or formed corners. Die clearance, punch geometry, bending radius, lubrication, and forming sequence must be adjusted according to the selected copper grade and thickness.

Before production, the material specification should be confirmed through documentation and, when required, incoming inspection. Important characteristics may include chemical composition, thickness tolerance, hardness, conductivity, surface quality, and flatness. Controlling these variables helps ensure that subsequent stamping and plating operations produce consistent results.

Surface Treatments for Durability and Contact Reliability

Copper naturally provides excellent conductivity, but surface treatment may be required to improve contact stability and environmental resistance. Common treatments for copper busbar stamping parts include tin plating, nickel plating, and silver plating. The appropriate choice depends on the electrical interface, temperature range, corrosion environment, mating material, and customer specifications.

Tin plating is widely used because it offers good solderability, suitable contact performance, and practical cost control. It can help protect copper from oxidation and support reliable bolted or connected interfaces. Nickel plating provides greater hardness and strong resistance to heat and corrosion. Silver plating offers excellent conductivity and may be selected for demanding contact applications, although its cost and environmental considerations must be evaluated.

Typical plating thickness may be approximately 3 to 5 micrometers, but the final requirement should be defined by the product drawing or technical agreement. Plating coverage, adhesion, thickness uniformity, edge condition, and surface cleanliness are important quality characteristics. Poor pretreatment or incomplete coverage can lead to discoloration, corrosion, increased contact resistance, or reduced service life.

In addition to metallic plating, busbars may receive insulation or protective integration after stamping. Depending on the assembly design, this may include insulating films, plastic carriers, powder coating, molded housings, or protective sleeves. The insulation system must maintain suitable dielectric strength, dimensional stability, temperature resistance, and clearance under expected vehicle operating conditions.

Precision Stamping Process

Part and Process Feasibility Review

Manufacturing begins with a review of the customer’s drawing, three-dimensional model, material specification, current rating, surface treatment, tolerance requirements, and annual demand. Engineers analyze the part geometry to determine whether it is best suited to a single-operation die, compound die, progressive die, transfer process, or a combination of stamping and secondary forming.

The review focuses on material utilization, bend direction, hole-to-edge distance, corner radius, burr direction, springback, die access, and production stability. Copper is highly formable, but its softness can make it sensitive to scratches, feeding marks, deformation, and handling damage. A careful process plan helps prevent such problems before the tooling is manufactured.

Strip Layout and Material Utilization

For progressive stamping, the strip layout determines how the part is positioned within the raw material. Engineers seek a balance between efficient material use and stable part transport. The carrier design must provide sufficient support during blanking and forming while allowing the finished part to be separated without distortion.

Material utilization has a direct effect on product cost. A well-optimized layout can reduce scrap and improve the number of usable parts produced from each coil or sheet. At the same time, the layout must account for grain direction, bending behavior, pilot holes, carrier strength, and the sequence of forming operations. The lowest scrap rate is not always the best solution if it compromises feeding reliability or dimensional consistency.

Die Design and Manufacturing

After the process plan is approved, the stamping die is designed around the part geometry and production requirements. Die components may include punches, dies, stripper plates, guide posts, guide bushes, carriers, pilots, inserts, bending blocks, forming units, and inspection features. Wear-prone components can be designed as replaceable inserts to simplify maintenance and extend tooling service life.

Precision machining is essential for copper busbar dies because small errors in hole location, bend position, or forming height can affect electrical assembly. Suzhou Shuangqisi Mold Equipment Co., Ltd. uses imported wire cutting machines, CNC machining centers, multiple grinding machines, and other precision machine tools to manufacture stamping dies and related components. These resources support accurate machining of complex profiles and close-fitting die elements.

Wire cutting is useful for producing precise punch and die profiles, especially where complex contours and narrow clearances are required. CNC machining centers provide efficient processing of die bases, inserts, forming blocks, and other structural components. Grinding equipment supports the finishing of working surfaces and precision components that require controlled flatness, parallelism, or dimensional accuracy.

Trial Stamping and Process Debugging

Tooling is tested through trial stamping before formal mass production. During this stage, engineers evaluate feeding, blanking, piercing, bending, forming, burrs, scratches, deformation, springback, and part removal. Sample parts are measured against the drawing, and adjustments are made to the die clearance, forming sequence, pressure, guide system, or carrier layout.

Experienced debugging personnel are particularly important when manufacturing thin, high-conductivity copper components. Copper may mark easily, and its mechanical behavior can change according to thickness, temper, and forming direction. The production team must identify the root cause of defects rather than merely correcting individual samples. A stable process should produce acceptable parts across the full operating range of the equipment.

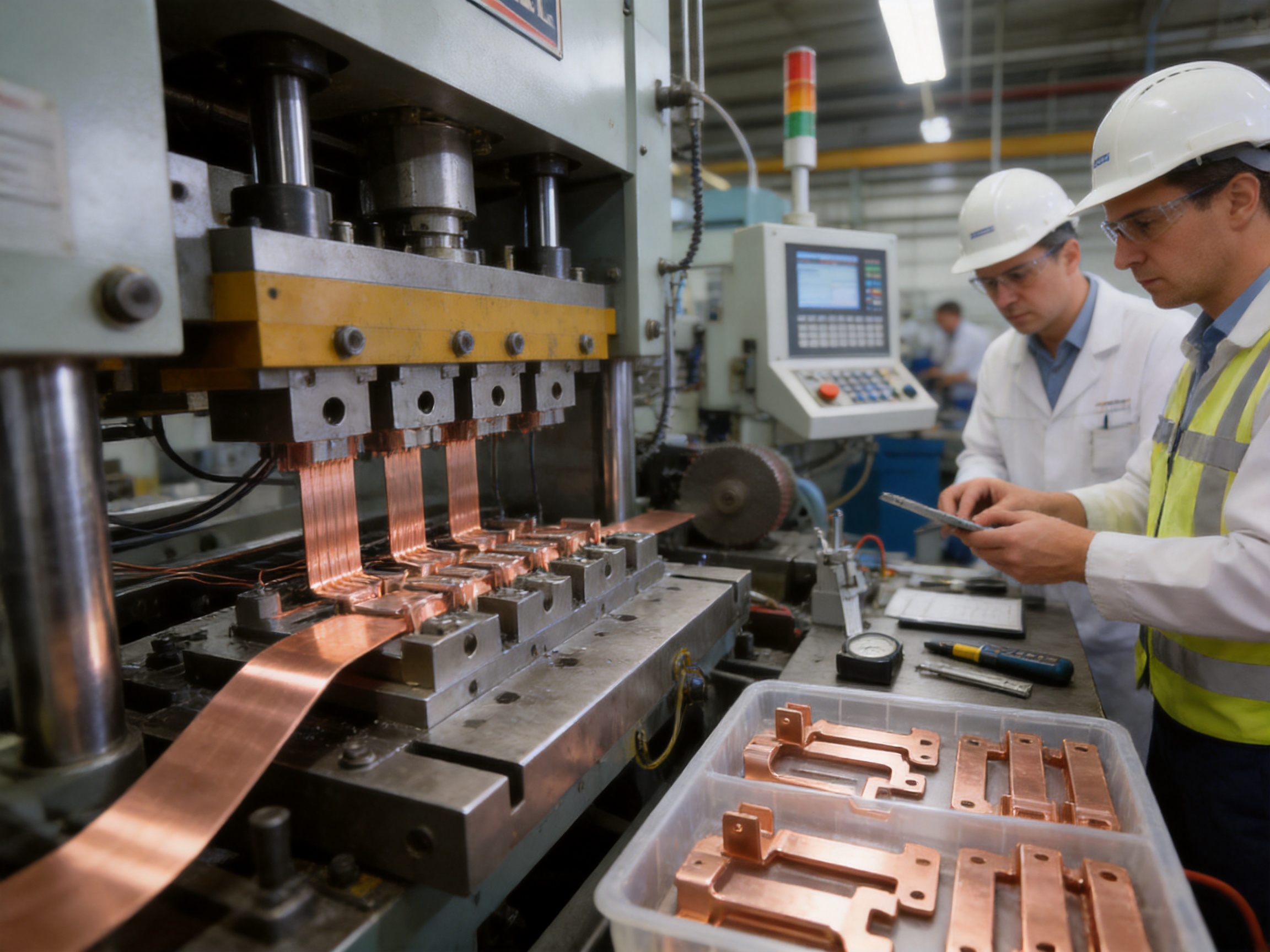

Progressive Stamping and Secondary Operations

When production volume is high, progressive stamping can combine several operations in one continuous process. The strip moves through a series of stations, with each station performing a defined operation. This can improve productivity and reduce manual handling. It is suitable for parts that require repeated blanking, piercing, bending, or forming operations in a controlled sequence.

Some busbar designs require secondary operations after stamping. These may include deburring, calibration, flattening, tapping, riveting, welding, plating, insulation application, or assembly with plastic carriers. The process route is selected according to the product’s functional requirements. If a secondary operation can be incorporated into the die without harming quality or maintainability, it may reduce handling and improve consistency.

Dimensional Accuracy and Quality Control

Precision copper busbars may require dimensional accuracy within approximately ±0.05 to ±0.20 millimeters, depending on the feature and product specification. Not every dimension necessarily requires the same tolerance. Critical hole positions, connection surfaces, bend heights, and locating features may have tighter requirements than nonfunctional external edges.

Inspection plans should identify the characteristics that influence electrical, mechanical, and assembly performance. Typical inspection items include overall length and width, material thickness, hole diameter, hole position, bend angle, formed height, flatness, burr height, surface condition, plating thickness, and insulation coverage.

Measurement equipment may include calipers, micrometers, height gauges, coordinate measuring equipment, optical projectors, contour measurement systems, coating thickness gauges, and electrical resistance test equipment. The inspection method should be appropriate for the tolerance and geometry being evaluated. For high-volume production, automated or fixture-based inspection can improve repeatability and shorten feedback time.

Quality control begins with incoming material inspection and continues through die setup, first-piece approval, in-process checks, final inspection, packaging, and shipment. Process records can be used to trace material batches, tooling conditions, inspection results, and corrective actions. This structured approach supports consistent production and helps customers manage their own automotive quality systems.

Surface quality is especially important for visible or insulated high-voltage components. Scratches, dents, sharp burrs, embedded particles, and plating defects may compromise installation or long-term reliability. Proper die polishing, protective handling, part separation, cleaning, and packaging are therefore essential parts of the manufacturing process.

Manufacturing Capacity and Equipment Strengths

Suzhou Shuangqisi Mold Equipment Co., Ltd. operates as a manufacturer integrating stamping die design, die manufacturing, stamping production, and service. The company has approximately 60 technical staff and more than 15 years of experience in the mold industry. Its equipment includes imported wire cutting machines, CNC machining centers, more than 10 grinding machines of various sizes, and 25 punch presses ranging from 80 tons to 400 tons.

This equipment range provides flexibility for different copper busbar sizes, material thicknesses, and production volumes. Smaller or medium-sized parts can be processed on suitable presses for efficient operation, while larger or more heavily formed components can be matched with higher-capacity equipment. Selecting the correct press capacity helps protect the die, improve process stability, and control energy and operating costs.

The company’s internal connection between toolmaking and stamping production is a practical advantage. When a production issue is identified, the mold engineering team can communicate directly with the stamping team and make targeted improvements. This reduces dependence on external coordination and can shorten the time required for trial adjustments, maintenance, and process optimization.

The company also has experience serving customers in servo drives, compressors, electrical equipment, and new energy vehicles. This background gives its engineers exposure to products that require accurate metal forming, reliable electrical interfaces, and consistent high-volume delivery. Customer examples include Anter Group, Ousheng Electric, Dongbei Group, and Huichuan Technology, according to the supplied company information.

Capability	Customer Value	Application to Copper Busbar Production
Integrated die design and manufacturing	Faster communication and process response	Supports customized busbar tooling and design changes
Imported wire cutting equipment	Accurate complex profiles	Produces precise punches, dies, and forming inserts
CNC machining centers	Efficient precision machining	Processes die bases, inserts, and structural components
More than 10 grinding machines	Improved finishing capability	Supports flatness, parallelism, and working-surface control
25 punch presses from 80T to 400T	Flexible production matching	Accommodates different part sizes, thicknesses, and forming loads
Experienced operators and debugging personnel	Stable trial production and ramp-up	Helps correct springback, burr, feeding, and forming issues
Stamping automation capability	Potentially lower handling and labor requirements	Supports automated feeding, transfer, inspection, and production integration

Automation and Turnkey Production Support

New energy vehicle programs often require more than an individual stamped component. Customers may need the die, press process, feeding system, inspection plan, production fixtures, and related automation to work together as one manufacturing solution. Through its investment in Suzhou Keshuang Intelligent Technology Co., Ltd., Suzhou Shuangqisi Mold Equipment Co., Ltd. can also provide stamping automation equipment and integrated production support.

Automation may include coil feeding, straightening, progressive die transfer, part collection, robotic handling, visual inspection, counting, stacking, and packaging. The exact configuration depends on the product geometry and production volume. For copper busbars, automated handling can reduce manual contact with finished surfaces and help prevent scratches, contamination, or accidental deformation.

Automation is also useful for process consistency. A controlled feeding system can maintain stable strip positioning, while automated transfer can reduce variation in part orientation. When inspection is incorporated into the line, defective pieces can be identified earlier, reducing the risk of mixed batches or downstream assembly interruptions.

The company’s turnkey approach may be especially beneficial for customers launching a new electric vehicle platform. Instead of separately coordinating a die supplier, stamping supplier, automation integrator, and process debugger, the customer can work with one technical partner for a larger portion of the project. This can simplify project communication, clarify responsibility, and support a smoother transition from prototype to mass production.

Design Considerations for Automotive Copper Busbars

Electrical Requirements

The busbar design should begin with the required continuous current, peak current, duty cycle, allowable voltage drop, and acceptable temperature rise. A component intended for a battery module may have different requirements from one connecting a traction inverter. Current capacity depends not only on copper cross-sectional area but also on ambient temperature, airflow, adjacent components, insulation, mounting method, and cooling conditions.

Connection surfaces should be designed to provide reliable contact pressure and sufficient area. Bolt holes, terminal tabs, and mating surfaces must account for fastener dimensions, torque, contact resistance, and assembly access. If the component will be joined by welding, the material and surface finish must be compatible with the selected welding method.

Mechanical and Vibration Requirements

Automotive busbars are exposed to vibration, shock, thermal cycling, and assembly stress. The part should be supported at suitable locations so that the conductive path does not experience excessive movement. Long unsupported sections may require additional mounting points, ribs, bends, or structural carriers.

Bend locations should be designed with suitable radii to avoid cracking or excessive work hardening. Tight corners may be possible with the right material condition and forming sequence, but they must be validated through trial production and durability testing. Springback should also be considered because it can influence hole alignment, terminal position, and assembly force.

Thermal and Insulation Requirements

The busbar must operate within the temperature limits of the copper, plating, insulation, and surrounding components. A design that performs well in a room-temperature test may require additional evaluation under high-current and elevated-temperature conditions. Thermal simulation, current-carrying tests, and temperature-rise testing can help confirm the design margin.

Clearance and creepage distances are important for high-voltage applications. The stamped geometry, insulation carrier, protective coating, and adjacent metal parts must be evaluated as a complete system. Sharp edges and uncontrolled burrs should be minimized because they may damage insulation or reduce electrical safety distances during assembly.

Manufacturability and Serviceability

Good busbar design considers how the part will be stamped, plated, inspected, transported, and installed. Consistent material flow and accessible die features can improve tool life and production stability. Standardized hole sizes, practical bend radii, and logical locating features can reduce tooling complexity without compromising function.

Serviceability should also be considered. Some high-voltage assemblies may require replacement of a module or connection component during maintenance. A busbar that is easy to locate, fasten, inspect, and remove can reduce service time. The final design should balance compact packaging with access for assembly and repair.

Advantages Compared with General Stamping Suppliers

Not every stamping supplier has the same level of experience in conductive copper components. Compared with a general-purpose sheet-metal supplier, a specialized stamping and die manufacturer can offer deeper control over material behavior, burr direction, plating preparation, precision forming, and high-volume repeatability.

The first advantage is engineering integration. When die design, die production, press stamping, and automation are handled within a connected organization, the product can be evaluated from both design and production perspectives. Engineers can identify manufacturability risks early and recommend changes that reduce scrap, improve tool life, or simplify later assembly.

The second advantage is equipment flexibility. A wide range of press capacities allows the production process to be matched to the component rather than forcing every product onto the same machine. This can improve forming quality and reduce unnecessary operating costs. Precision machining and grinding resources also support closer control of the die components that determine part accuracy.

The third advantage is practical debugging experience. Copper stamping may involve burr control, surface protection, springback, material distortion, and plating-related requirements that are not present in ordinary steel brackets. Experienced operators can respond to these issues through die adjustment, process sequencing, handling changes, and inspection feedback.

The fourth advantage is the ability to support automation. Automotive customers increasingly seek stable, repeatable production lines rather than isolated manual operations. A supplier that can provide both stamping dies and automation equipment may help create a more consistent and scalable manufacturing system.

Compliance and Responsible Production

According to the supplied company information, the product and manufacturing activities are intended to support IATF 16949, RoHS, and ISO-related requirements. Automotive customers should confirm the exact certifications, scope, validity, and applicability to the specific production site and product before placing an order.

IATF 16949 is associated with automotive quality management and emphasizes process control, risk management, traceability, corrective action, and continual improvement. These principles are relevant to copper busbar production because electrical components must remain consistent across large quantities and multiple production batches.

RoHS-related requirements concern restrictions on certain hazardous substances. Plating materials, base metals, insulation materials, lubricants, and packaging should be reviewed according to the customer’s compliance requirements. Maintaining material declarations and supplier documentation can help support responsible product management.

Environmental responsibility also includes efficient material use. Copper is valuable and recyclable, so optimized strip layouts, controlled scrap collection, and responsible recycling can reduce waste. Automated production and stable tooling may further reduce rejected parts and unnecessary material consumption.

Typical Applications in New Energy Vehicles

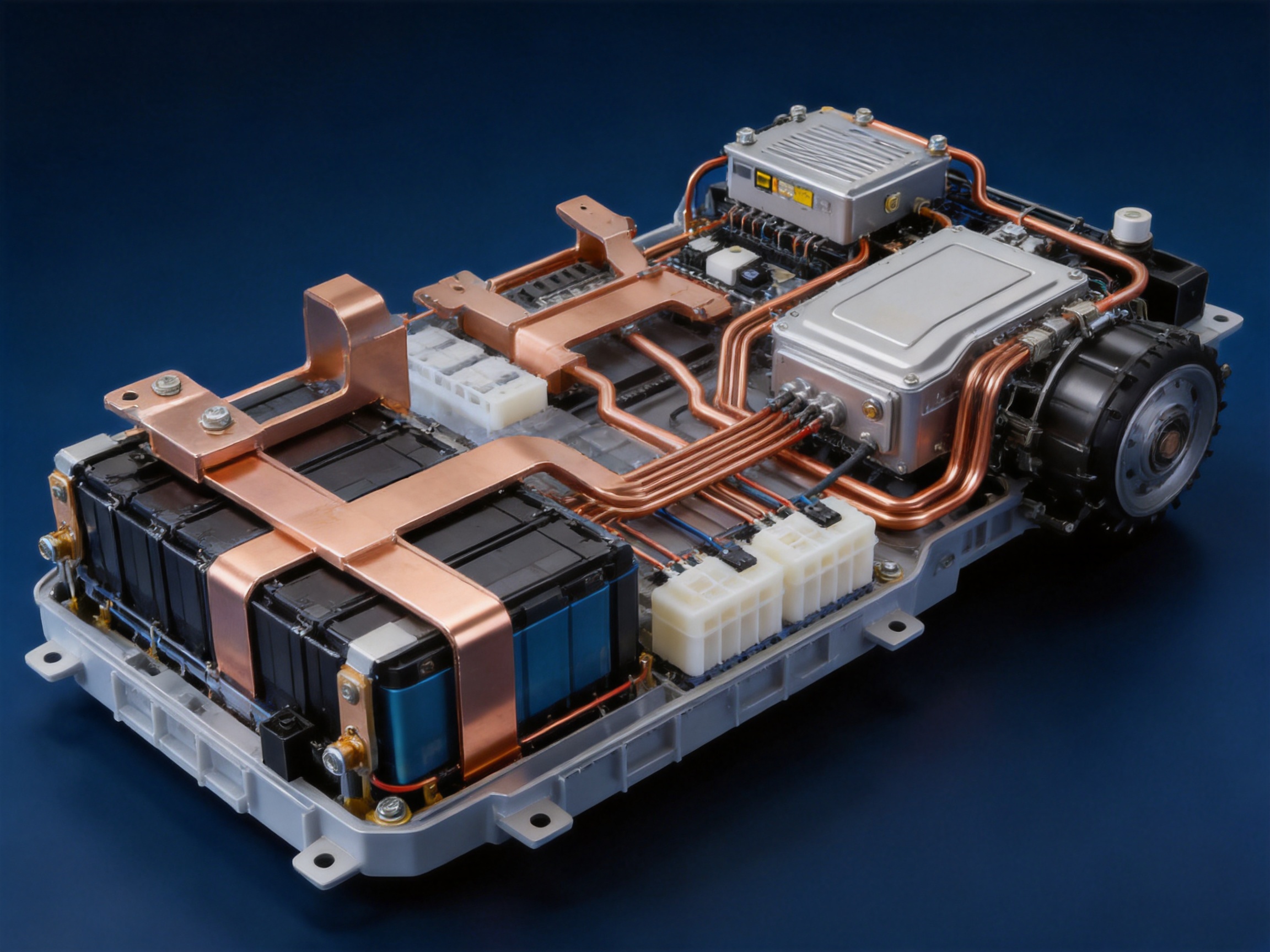

Battery Pack Interconnections

Copper busbars can connect battery modules, cell groups, contactors, fuses, sensors, and high-voltage distribution units. Their geometry can be adapted to the internal structure of the pack, including cooling plates, module frames, and protective barriers.

Battery Management Systems

Battery management systems require electrical connections for monitoring, balancing, protection, and communication-related functions. Depending on the design, stamped copper components may be used in power distribution or as part of module-level interconnection structures.

Traction Inverter and Drive Motor Connections

The inverter converts battery power into the controlled electrical output required by the motor. Busbars used in this area must support high current, controlled resistance, thermal stability, and reliable mechanical connections under vibration.

DC/DC Converters and Auxiliary Power Systems

DC/DC converters supply lower-voltage vehicle systems from the high-voltage battery. Copper busbars can provide compact connections within the converter or between the converter and related junction components.

Charging and High-Voltage Junction Units

Charging systems and high-voltage junction boxes require conductive parts that can be assembled accurately and protected against environmental exposure. Plated stamped copper components can support reliable connections between contactors, fuses, charging modules, and vehicle distribution circuits.

Energy Storage and Industrial Electrification

Although the primary focus is new energy vehicles, similar copper busbar requirements exist in energy storage systems, charging infrastructure, industrial drives, compressors, and power conversion equipment. Experience in these adjacent fields can support broader engineering knowledge and manufacturing flexibility.

From Prototype to Mass Production

A successful busbar project benefits from a controlled development sequence. The first phase is requirements definition, including electrical performance, material, dimensions, surface treatment, insulation, annual volume, packaging, and inspection standards. Clear requirements reduce later changes and help the supplier prepare an appropriate tooling strategy.

The second phase is design for manufacturing. Engineers review the three-dimensional model, identify critical dimensions, optimize the strip layout, and determine whether progressive or multi-step stamping is appropriate. At this stage, design modifications can often be made at lower cost than after tooling completion.

The third phase is die construction and trial production. The tooling is manufactured, assembled, tested, and adjusted. Samples are inspected, and any required corrections are documented. Customer approval may involve dimensional reports, material certificates, surface-treatment reports, sample submission, and process capability evidence.

The fourth phase is production validation. The supplier confirms that the process can meet the required output and quality level over an extended run. This may include capability studies, inspection frequency confirmation, packaging validation, and traceability review.

The final phase is mass production and continuous improvement. Tool maintenance, spare inserts, process monitoring, defect analysis, and customer feedback remain important after launch. A capable supplier should continue to support the product throughout its service life, particularly if the vehicle platform undergoes design changes or volume increases.

Packaging, Handling, and Delivery

Copper busbars should be protected from scratches, contamination, moisture, and deformation during storage and shipment. Packaging design depends on the size, shape, plating, insulation, and stacking sensitivity of the product. Individual separators, molded trays, anti-corrosion materials, or customized returnable containers may be used when appropriate.

Parts with delicate plated surfaces should not be allowed to rub against one another. If the busbars include projecting tabs or complex bends, the packaging must prevent concentrated pressure during transportation. Labels should identify the part number, production batch, quantity, material condition, surface treatment, and any orientation requirements needed by the customer.

Good packaging is not merely a logistics concern. It protects the quality achieved during stamping and plating. A part that passes final inspection but arrives with bent terminals, damaged plating, or contaminated contact surfaces may still interrupt the customer’s assembly process. Packaging validation is therefore an important part of total product quality.

How to Select a Copper Busbar Stamping Partner

Customers should evaluate whether the supplier can manage the complete technical chain from material and tooling to production and delivery. Important questions include whether the supplier designs its own dies, what press range is available, how copper surface quality is protected, how critical dimensions are inspected, and how tooling maintenance is managed.

It is also useful to review the supplier’s experience with similar current levels, material grades, thicknesses, plating systems, and automotive applications. A company that understands both stamping and electrical requirements can more effectively identify the relationship between geometry, resistance, temperature rise, and assembly reliability.

Communication speed is another practical consideration. Engineering changes are common during new vehicle development. A supplier with in-house moldmaking, experienced debugging staff, and automation resources may be able to respond more quickly than a fragmented supply chain.

Finally, customers should assess quality documentation, production capacity, delivery planning, cost transparency, and after-sales service. A competitive price is valuable, but long-term program performance also depends on stable tooling, consistent inspection, reliable packaging, and responsive technical support.

Frequently Asked Questions

What copper grades are commonly used for electric vehicle busbars?

Common choices include C11000, C10100, and T2 copper. The final grade depends on the required conductivity, forming behavior, mechanical properties, availability, and customer specification. Material selection should be confirmed through engineering review and documented material certificates.

What current range can these busbars support?

The supplied product information indicates a design range of approximately 30 to 2,000 amperes. Actual capacity depends on cross-sectional area, length, ambient conditions, cooling, insulation, mounting, duty cycle, and allowable temperature rise. Current ratings should therefore be validated for the complete assembly rather than based only on the copper grade.

What dimensional accuracy is available?

Depending on the feature and design, dimensional accuracy may be controlled within approximately ±0.05 to ±0.20 millimeters. Critical dimensions should be identified on the drawing so that tooling, inspection equipment, and process capability studies can be planned appropriately.

Why is surface plating used on copper busbars?

Plating can improve corrosion resistance, contact stability, solderability, hardness, and interface performance. Tin, nickel, and silver are common options. The choice depends on temperature, mating materials, connection method, environmental exposure, and cost requirements. Typical plating thickness may be around 3 to 5 micrometers, subject to the final specification.

Can complex three-dimensional busbars be manufactured?

Yes. Through sequential bending and forming operations, copper busbars can be produced with stepped sections, offset planes, connection tabs, mounting points, and other three-dimensional features. The feasibility depends on material thickness, bend radii, tolerance requirements, springback, and the available tooling space.

What press capacity is available for production?

The company operates 25 punch presses ranging from 80 tons to 400 tons. This range allows production planning for different part sizes, thicknesses, forming loads, and tooling configurations. The correct press is selected according to the calculated stamping force and process requirements.

Can the supplier provide the stamping die as well as the stamped part?

Yes. The company’s business model integrates stamping die design, die manufacturing, stamping production, and service. This allows customers to request a complete tooling and production solution rather than sourcing the mold and stamped component from unrelated suppliers.

Is stamping automation available?

Through its related automation capability, the company can support stamping automation equipment and turnkey solutions. Depending on the project, this may involve feeding, transfer, part handling, inspection, stacking, and production-line integration.

How are burrs and sharp edges controlled?

Burr control depends on material condition, die clearance, punch and die sharpness, cutting direction, tool maintenance, and secondary deburring requirements. The process should define the maximum permitted burr height and include inspections for critical edges, especially where insulation or high-voltage clearance is involved.

Can the busbars be supplied with insulation?

Some projects may require insulation films, plastic carriers, molded components, or other protective treatments after stamping. The specific solution depends on voltage, temperature, clearance, assembly method, and customer design. Insulation requirements should be included in the initial product review.

What information should a customer provide for a quotation?

Useful information includes the two-dimensional drawing, three-dimensional model, copper grade, material thickness, annual volume, current rating, plating requirement, insulation requirement, critical tolerances, packaging expectations, delivery location, and target production schedule. Providing complete information improves quotation accuracy and helps the supplier recommend an appropriate die and process route.

How does an integrated manufacturer help control cost?

Integrated die and stamping capabilities can reduce external coordination, shorten tooling feedback cycles, optimize material layout, and support stable production. Cost control also depends on annual volume, material utilization, tooling life, cycle time, secondary operations, inspection requirements, and packaging. A complete technical review is needed to determine the most economical solution.

Conclusion

New energy vehicle copper busbar stamping parts are essential components for compact, efficient, and reliable high-voltage electrical systems. Their high conductivity, thermal performance, customizable geometry, mechanical stability, and compatibility with automated production make them a strong alternative to complex wiring harness arrangements in many applications.

The product’s value depends on more than the copper material itself. Accurate die design, controlled stamping, reliable forming, burr management, suitable plating, careful inspection, and protective packaging all contribute to final performance. A supplier with integrated mold manufacturing and stamping capabilities can address these requirements as one connected process.

Suzhou Shuangqisi Mold Equipment Co., Ltd. combines stamping die design and manufacturing with press production, experienced technical personnel, precision machining equipment, and stamping automation support. Its 80-ton to 400-ton press range, wire cutting machines, CNC machining centers, grinding resources, and turnkey approach provide a flexible foundation for customized automotive stamping projects.

For vehicle manufacturers, battery-system developers, power-electronics companies, and industrial electrification customers, the most effective busbar solution is one that balances electrical performance, mechanical durability, dimensional accuracy, manufacturability, automation, and total cost. With careful engineering collaboration from the first design review through mass production, precision stamped copper busbars can help improve the efficiency and integration of next-generation electric mobility systems.

References

1. Copper Development Association, Copper and Copper Alloys: Electrical and Thermal Conductivity Principles.

2. International Automotive Task Force, IATF 16949 Automotive Quality Management System Requirements.

3. International Organization for Standardization, ISO 9001 Quality Management System Principles.

4. European Union, Restriction of Hazardous Substances Requirements for Electrical and Electronic Equipment.

5. ASM International, Metal Forming and Stamping Process Engineering Handbook.

6. Automotive engineering materials and high-voltage electrical interconnection design principles supplied for product development reference.

7. Suzhou Shuangqisi Mold Equipment Co., Ltd., technical information concerning stamping dies, stamping parts, stamping automation equipment, and new energy vehicle copper busbar production.
