Automotive Motor Housing Stamping Parts: Precision Protection for Modern Vehicle Motors

Automotive motor housing stamping parts are essential structural components used to secure, protect, and support electric motors and related drive systems in modern vehicles. As automotive electrical systems become more compact, powerful, and highly integrated, the motor housing must provide far more than a simple protective shell. It must maintain dimensional accuracy, resist vibration, control heat, prevent contamination, support reliable assembly, and remain stable throughout the vehicle’s service life.

Precision stamping is one of the most effective manufacturing methods for producing these components in large and medium production volumes. Through carefully engineered dies, controlled forming operations, and strict quality inspection, sheet metal can be transformed into housings, covers, brackets, support plates, shields, and other functional components with consistent geometry. This process offers an excellent combination of productivity, repeatability, material efficiency, and cost control.

Automotive motor housing stamping parts are commonly manufactured from high-strength steel, stainless steel, galvanized steel, aluminum alloy, and other materials selected according to the motor’s operating environment. The finished components can be designed with mounting holes, reinforcement ribs, flanges, drainage channels, ventilation openings, positioning features, and interfaces for electrical or mechanical assemblies.

For vehicle manufacturers and motor system suppliers, the quality of the housing directly affects the reliability of the complete motor assembly. A poorly formed or inaccurately positioned component may create assembly interference, uneven loading, excessive vibration, inadequate sealing, or premature fatigue. A precisely stamped housing, by contrast, helps create a stable foundation for the motor and contributes to improved safety, durability, and production efficiency.

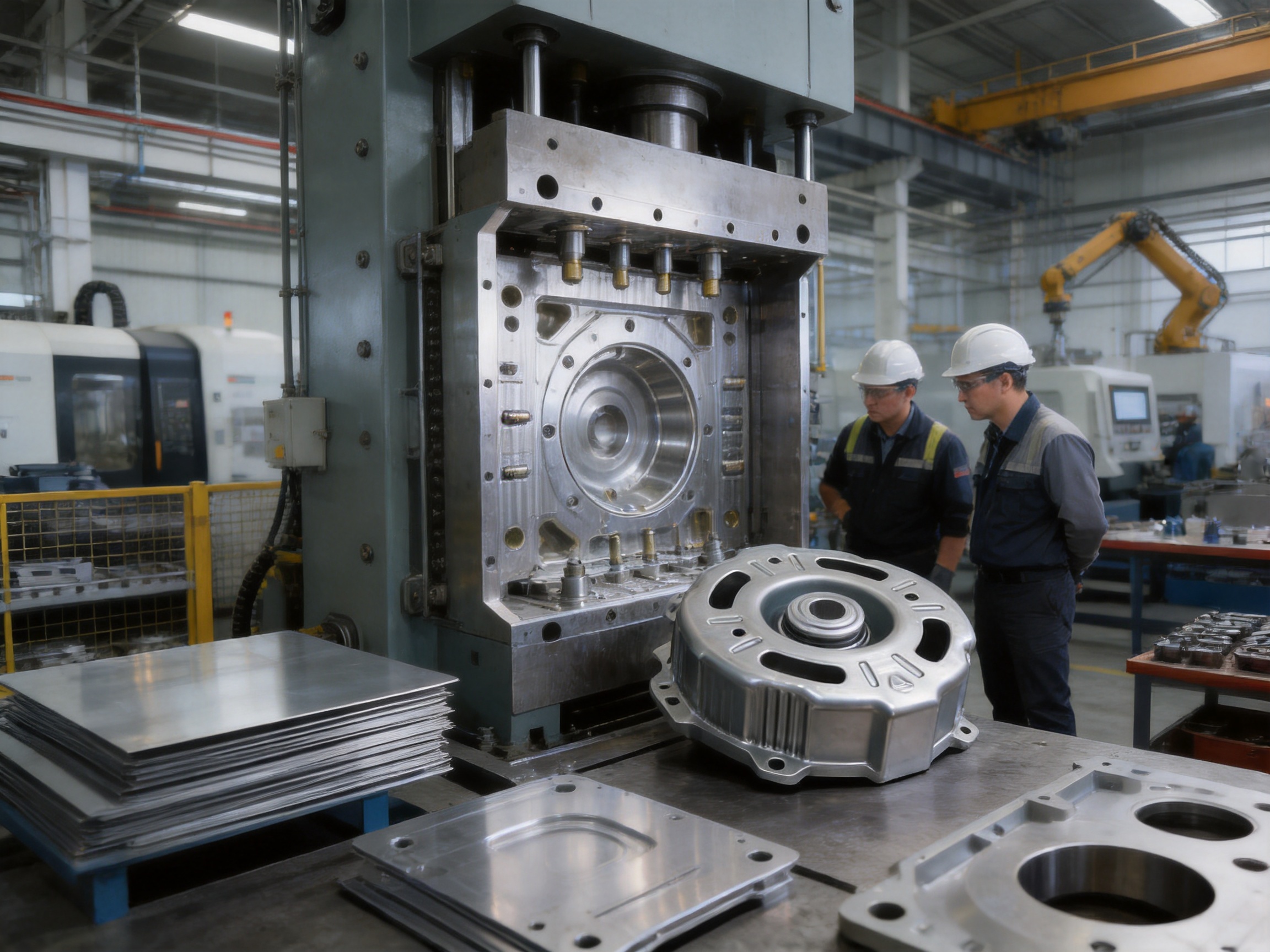

Automotive motor housing stamping parts

What Are Automotive Motor Housing Stamping Parts?

Automotive motor housing stamping parts are metal components formed from sheet material using stamping dies and mechanical or hydraulic presses. Depending on the design, a part may be produced through blanking, piercing, bending, drawing, flanging, embossing, trimming, restriking, or a combination of several operations. The process is selected according to the part’s geometry, material properties, required tolerance, production quantity, and assembly function.

The term “motor housing” may refer to a complete outer shell or to one of several stamped sections that work together. Typical products include upper and lower housing covers, motor end plates, protective shields, mounting brackets, support shells, battery-related motor covers, stator support components, and formed panels for auxiliary vehicle motors. Some parts are relatively shallow and can be produced in progressive dies, while deeper or more complex housings may require transfer stamping or multiple forming stages.

These components normally perform several functions at the same time. First, they protect sensitive motor elements from impact, dust, moisture, oil, road debris, and accidental contact. Second, they provide mounting points that connect the motor to the vehicle structure or a surrounding transmission system. Third, they contribute to the alignment of internal parts. Fourth, they may guide heat away from the motor or promote airflow through carefully positioned openings. Finally, they can serve as a barrier that reduces electromagnetic interference or helps maintain the desired environmental protection level.

Because the housing is integrated with other parts, its dimensional requirements are often strict. Hole positions, flange angles, wall profiles, locating points, and sealing surfaces must remain within approved tolerances. Even a small deviation can affect the fit of a bearing, gasket, cable connector, motor cover, or adjacent bracket. Precision stamping provides the repeatable manufacturing foundation needed to maintain this level of consistency across production batches.

Functional Requirements of a High-Quality Motor Housing

Structural Protection

A motor housing must withstand the loads generated during vehicle operation. Acceleration, braking, cornering, road vibration, mechanical shock, and resonance can all transfer forces into the housing. High-strength steel and aluminum alloy materials offer different performance advantages, but both must be formed without excessive thinning, cracking, wrinkling, or residual distortion.

Reinforcement ribs and formed beads are frequently incorporated into the design to increase stiffness without adding unnecessary material. These features can reduce panel flexing and help preserve the position of internal motor components. A well-designed stamped structure may deliver a favorable strength-to-weight ratio compared with a simple flat plate or a heavier machined construction.

Dimensional Stability

Dimensional stability is critical for assembly and long-term operation. A housing that changes shape under load or temperature variation may place excessive stress on bearings, seals, fasteners, and electrical connections. Uniform wall thickness, controlled forming direction, consistent springback compensation, and suitable material selection all contribute to stable performance.

Precision stamping dies are designed to control the movement of material during forming. Die clearances, punch radii, draw beads, guide systems, and forming sequences are established to minimize dimensional variation. Secondary restriking or calibration operations may be used when a particularly precise flange, opening, or mounting surface is required.

Thermal Management

Automotive motors generate heat during operation, especially under high load, repeated acceleration, or continuous duty conditions. If heat accumulates inside the motor assembly, insulation, lubricants, magnets, wiring, and other components may experience accelerated aging. Housing components therefore often include ventilation holes, airflow paths, heat dissipation surfaces, or mounting features for cooling systems.

Stamped metal is well suited to thermal management because it can be formed into extended surfaces, channels, louvers, and thin-walled structures. Aluminum alloy offers good thermal conductivity and low weight, while steel provides strength, stiffness, and cost advantages. The best material depends on the motor design, operating temperature, corrosion exposure, joining method, and overall vehicle weight targets.

Drainage and Contamination Control

Moisture and contaminants can enter vehicle components through condensation, washing, rain, road spray, or changes in temperature and pressure. Properly designed drainage structures help prevent water accumulation inside or around the motor housing. Drainage holes, channels, slopes, and controlled gaps can guide liquid away from sensitive areas without weakening the component.

Drainage features must be balanced with sealing and protection requirements. Openings should be positioned so that they support liquid removal while limiting the entry of dirt and debris. Their shape, size, and location must also be compatible with the stamping process and with the strength of the surrounding material.

Vibration and Noise Reduction

Electric motors and auxiliary automotive motors may operate at high rotational speeds. Vibration can result from rotating masses, electromagnetic forces, gear engagement, road inputs, or installation conditions. The housing influences how these forces are transmitted to the vehicle structure.

Formed ribs, curved surfaces, reinforced mounting zones, and accurately aligned fastening points can improve rigidity and reduce unwanted movement. Consistent geometry is particularly important because variation between housings may lead to different vibration behavior from one motor assembly to another. Precise stamping supports stable production and helps suppliers maintain predictable noise, vibration, and harshness performance.

Advantages of Precision Stamping Compared with Alternative Manufacturing Methods

Higher Production Efficiency

Compared with machining a housing from a solid block, stamping can produce complex sheet metal components with considerably less material removal. Once the die has been developed and validated, a press can complete one or more operations rapidly and repeatedly. This makes stamping especially suitable for automotive programs that require consistent quantities over an extended production period.

Progressive dies can combine blanking, piercing, forming, and cut-off operations in a continuous sequence. Transfer processes can move larger or deeper parts between multiple stations. The correct configuration reduces manual handling and supports a stable takt time. As a result, the manufacturer can improve output while reducing the labor and processing time associated with individual operations.

Consistent Part-to-Part Quality

Automotive customers require repeatable parts because their assembly lines depend on predictable interfaces. A precision stamping die establishes the fundamental geometry of the component, while press settings, material control, inspection procedures, and preventive maintenance help keep that geometry stable.

Compared with manually fabricated or individually machined components, stamped parts can provide more uniform hole locations, bend angles, flange dimensions, and overall profiles. Consistency is particularly valuable for automated assembly, where a small dimensional difference can interrupt production or require manual adjustment.

Efficient Material Utilization

Sheet metal stamping can be optimized through nesting and strip layout design. Engineers can study the relationship between the blank shape, grain direction, trimming allowance, and material utilization before production begins. A well-planned layout reduces scrap and lowers the material cost per part.

Material utilization is also connected to sustainability. Less scrap means lower demand for raw material, less energy used for melting and processing, and reduced waste handling. Although stamping dies require an initial investment, the long-term cost per part can be highly competitive when the production volume and quality requirements are properly considered.

Design Flexibility

Stamping supports a broad range of geometries. Parts can include holes, slots, ribs, embossments, flanges, louvers, curved walls, and integrated locating features. These features may reduce the number of separate brackets or fasteners required in the final assembly.

Design flexibility also allows engineers to combine several functional requirements into one component. A housing cover, for example, may provide structural support, cable positioning, airflow guidance, drainage, and protection from external impact. Integrating these functions into a stamped part can reduce assembly time and simplify inventory management.

Weight and Strength Optimization

Automotive manufacturers continuously seek lower vehicle weight without sacrificing safety or durability. Stamped steel can achieve high strength through appropriate material grades and formed reinforcement. Aluminum alloy can offer further weight reduction where its strength, conductivity, and corrosion characteristics are suitable.

Instead of increasing wall thickness everywhere, designers can place material where it contributes most effectively to stiffness and load transfer. Ribs, beads, flanges, and shaped transitions can improve performance while maintaining a relatively efficient material profile. This approach supports the development of lighter motor systems and improved vehicle energy efficiency.

Material Selection for Automotive Motor Housings

High-Strength Steel

High-strength steel is widely used where stiffness, impact resistance, fatigue performance, and cost control are important. It is suitable for mounting structures, protective shells, brackets, and motor components exposed to mechanical loads. Its relatively high strength allows designers to reduce thickness while maintaining structural performance.

When high-strength steel is stamped, the forming process must account for springback, tensile strength, elongation, and the risk of cracking at tight radii. Die design, lubrication, forming speed, and blank-holder control all influence the final result. Proper process development is necessary to achieve the required shape without excessive residual stress.

Aluminum Alloy

Aluminum alloy is attractive for applications where low weight and thermal conductivity are priorities. It can help reduce the mass of the motor system and may assist heat transfer away from operating components. Aluminum is also naturally resistant to many forms of corrosion, although the exact performance depends on the alloy, surface condition, environment, and contact with other metals.

Aluminum alloys may behave differently from steel during stamping. Their forming limits, springback characteristics, surface sensitivity, and lubrication requirements must be carefully considered. Tool surfaces should be maintained properly to avoid scratches or material pickup. The selected alloy must also be compatible with joining, coating, and service-temperature requirements.

Coated and Corrosion-Resistant Materials

Vehicle motor housings may be exposed to humidity, salt spray, mud, oil, cleaning chemicals, and temperature cycles. Galvanized steel, stainless steel, coated sheet, or post-stamping surface treatments may be selected to improve corrosion resistance. The choice depends on the location of the motor, the expected service environment, and the required service life.

When a coated sheet is formed, the process must protect the coating from excessive damage. Cut edges, pierced holes, and formed corners may require additional corrosion protection. Quality control should evaluate not only the dimensional condition of the stamped component but also the integrity of its surface and protective layer.

Material Option	Primary Advantages	Important Process Considerations	Typical Application Direction
High-strength steel	High stiffness, impact resistance, fatigue strength, and cost efficiency	Springback control, forming force, cracking risk, die strength	Structural housings, brackets, protective covers
Aluminum alloy	Low weight, thermal conductivity, and good corrosion resistance	Surface protection, lubrication, springback, alloy forming limits	Lightweight covers, heat-related structures, auxiliary motor housings
Galvanized steel	Strong base material with improved corrosion protection	Coating protection, edge treatment, tool cleanliness	Vehicle areas exposed to moisture and road contaminants
Stainless steel	High corrosion resistance and durable surface performance	Higher forming force, work hardening, tool wear	Specialized or highly exposed motor components

Advanced Manufacturing Process

Application and Design Review

Production begins with an understanding of the motor housing’s function. Engineers review the available drawings, three-dimensional models, material specifications, tolerance requirements, assembly interfaces, expected production volume, and testing standards. They also examine how the part will be installed and what loads or environmental conditions it will experience.

During this stage, manufacturability issues can be identified before die construction begins. Examples include excessively tight inside radii, insufficient distance between holes and edges, difficult draw depths, unsuitable bend directions, excessive local thinning, and unnecessary tolerance requirements. Early design review helps reduce later modifications and improves the balance between performance, cost, and production feasibility.

Process Planning

After the product design is understood, the manufacturing team develops a sequence of operations. A simple component may require blanking, piercing, bending, and final calibration. A more complex housing may require several forming stations, trimming, hole piercing, flanging, restriking, deburring, and inspection.

Process planning must consider material flow. If the material is forced to move too quickly or unevenly, the result may be wrinkles, splits, distortion, or inconsistent wall thickness. Engineers evaluate the blank shape, draw direction, forming radius, clamping method, lubrication, and station order. The purpose is to create a controlled transformation from flat sheet to accurate three-dimensional component.

Stamping Die Design and Manufacturing

The die is the central tool that determines the shape and repeatability of the stamped part. It generally includes working inserts, punches, dies, guide posts, stripper plates, lifters, springs, holders, and other supporting elements. The design must provide sufficient strength for the forming load while allowing efficient material movement and safe part removal.

High-quality die manufacturing depends on accurate machining and fitting. CNC machining centers produce complex die surfaces and precision pockets. Wire cutting machines are used for fine profiles, inserts, and openings that require tight accuracy. Grinding machines create precise flatness, surface finish, and dimensional relationships. Skilled technicians then assemble, adjust, and verify the die components.

The company’s equipment includes imported wire cutting machines, CNC machining centers, more than ten grinding machines of different sizes, and a range of other precision machine tools. This equipment supports the internal production of stamping dies and helps reduce dependence on external processing for critical die components. In-house capability can improve coordination between design, machining, assembly, trial production, and correction.

Die Trial and Debugging

A die must be tested before it is released for stable production. During trial stamping, technicians assess the formed shape, material flow, hole accuracy, surface condition, burrs, springback, and press behavior. Trial results are compared with the approved drawings and quality requirements.

Adjustments may involve polishing, modifying clearances, changing forming radii, correcting guide alignment, adjusting stripper pressure, improving lubrication, or changing the forming sequence. Experienced debugging personnel are important because many forming issues require practical judgment. A simulation or drawing review may identify potential risks, but physical trial results reveal how the actual material and die interact under production conditions.

Press Production

Once the die is validated, the stamped part can be produced on a suitable press. The manufacturing facility has 25 punch presses ranging from 80 tons to 400 tons. This range allows different die sizes, material thicknesses, and forming loads to be matched with appropriate equipment.

Press selection influences safety, productivity, part quality, and die life. The press must provide adequate tonnage, stroke, shut height, bed size, speed control, and feeding capability. Operating below the required capacity can cause unstable forming or equipment overload, while using an excessively large press may reduce efficiency and increase operating costs.

Secondary Operations

Some motor housing components require secondary operations after the primary stamping process. These may include deburring, tapping, riveting, welding, flattening, calibration, cleaning, coating, or assembly with other stamped pieces. The operation depends on the final design and customer requirements.

Secondary operations should be planned as part of the overall manufacturing solution rather than treated as isolated tasks. For example, a hole that will later receive a fastener must have the correct diameter, roundness, edge condition, and position. A flange that will be welded must maintain the required contact area and orientation. Integrating these considerations early can prevent unnecessary rework and improve the final assembly result.

Quality Control and Performance Verification

Incoming Material Inspection

Material quality is the foundation of reliable stamping. Incoming sheet should be checked against the approved grade, thickness, surface condition, mechanical properties, and applicable certificates. Variation in thickness or hardness can affect forming behavior and final dimensions.

Surface condition is also important. Scratches, dents, rust, scale, oil contamination, or coating defects may become more visible after forming. Material identification and batch traceability help manufacturers investigate any later quality issue and maintain control over production records.

First-Article and Process Inspection

First-article inspection confirms that a new die or revised process produces parts that meet the drawing and specification. Critical dimensions may include overall length and width, flange height, hole position, mounting pitch, bend angle, wall profile, flatness, and sealing surface condition.

During ongoing production, process inspection helps detect drift before a large quantity of nonconforming product is made. Inspection frequency can be determined according to part risk, production volume, process capability, and customer requirements. Operators may check visual features and basic dimensions, while quality personnel use more detailed measuring equipment for critical characteristics.

Dimensional Accuracy

Dimensional accuracy affects interchangeability and assembly efficiency. Inspection may be performed with calipers, micrometers, height gauges, gauges, measuring fixtures, or coordinate measuring equipment. A dedicated checking fixture can quickly verify whether mounting holes, locating points, and formed surfaces are positioned correctly.

For complex housings, three-dimensional measurement can confirm the relationship between multiple surfaces and features. This is valuable when the component must match a motor body, cover, bearing support, gasket, or vehicle mounting structure. Dimensional reports also provide useful information for process improvement and customer approval.

Pressure and Corrosion Resistance

Automotive motor housing stamping parts may undergo pressure resistance and corrosion resistance testing according to the application. Pressure-related testing can help verify structural integrity, sealing behavior, or resistance to deformation under specified conditions. Corrosion testing evaluates how the material and surface treatment respond to moisture, salt, and other environmental exposure.

Testing requirements vary according to the motor location and customer standard. Components installed in exposed areas normally require more attention to corrosion protection, drainage, and surface durability. The results should be documented and connected to material batches, process parameters, and inspection records.

Surface and Edge Quality

Sharp burrs, cracks, excessive scratches, and damaged coatings can create safety, assembly, or durability problems. Cut edges should be controlled, particularly around holes, slots, and trimmed flanges. Deburring may be required when the part will be handled manually, installed near wiring, or used in a sealing area.

Surface appearance is not only a cosmetic concern. A damaged surface may provide a starting point for corrosion or fatigue. Consistent tooling maintenance, suitable clearance, correct lubrication, and controlled material handling help preserve the surface quality of the stamped part.

Manufacturing Strengths and Integrated Capabilities

A major strength of the manufacturing organization described in the supplied company information is its integrated approach to stamping dies, stamped parts, and stamping automation equipment. Instead of treating die design, die production, part stamping, and automation as completely separate services, the organization can coordinate these capabilities within one broader technical system.

The company has approximately 60 technical staff and more than 15 years of experience in the mold industry. Its equipment includes CNC machining centers, imported wire cutting machines, multiple grinding machines, and 25 presses with capacities from 80 tons to 400 tons. This combination supports both toolmaking and production stamping for a variety of components.

In-house die capability can provide several practical benefits. Communication between the product engineer and the toolmaker is more direct, design changes can be reviewed quickly, and trial results can be returned to the engineering team without unnecessary delay. This can shorten the development cycle and help maintain consistency between the approved drawing and the production tool.

Experienced operators and debugging personnel also contribute to manufacturing stability. Stamping quality depends not only on machines and software but also on the ability to interpret material behavior, identify early warning signs, and make controlled adjustments. A technically capable team can respond to springback, wrinkling, cracking, burrs, or feeding issues more efficiently than a process that relies solely on standard settings.

The organization also established a related company focused mainly on stamping automation equipment. This supports the development of turnkey solutions that combine dies, presses, feeding systems, transfer equipment, and other production machinery. For customers seeking a complete manufacturing line, integrated technical planning can simplify project coordination and improve compatibility between the die and the automation system.

Customers may also require investment in related production equipment or customized manufacturing arrangements. The stated ability to support such needs provides an additional level of flexibility. Instead of supplying only a standalone die, the manufacturer can consider the complete production objective, including expected output, labor requirements, equipment utilization, quality control, and long-term operating cost.

Advantages over Less Integrated or Less Specialized Suppliers

When evaluating automotive motor housing suppliers, customers often compare more than the quoted unit price. Tool development time, dimensional stability, communication efficiency, quality documentation, production capacity, and after-sales support can have a greater effect on the total project cost.

An integrated supplier can reduce the coordination burden between separate die makers, stamping factories, and automation providers. When several companies are involved, responsibility for a forming problem may be unclear. A die supplier may attribute the issue to the press, while the stamping supplier may attribute it to the die or material. Coordinated engineering ownership makes it easier to identify the actual cause and implement a solution.

Another advantage is the ability to support both prototype development and volume production. Motor housing programs often evolve as the vehicle or motor design is refined. A supplier with die manufacturing, stamping, and technical debugging capabilities can respond to design changes and process improvements more efficiently than a supplier limited to one stage of the project.

Equipment diversity is also important. Presses from 80 tons to 400 tons provide flexibility for different component sizes and forming requirements. Precision machining and grinding equipment support accurate die construction, while experienced technicians contribute to final fitting and trial validation. Together, these resources can improve the likelihood of achieving reliable production without repeated outsourcing delays.

Cost control is another potential advantage. Efficient die construction, controlled material utilization, stable press production, and reduced external coordination can help lower the total cost of ownership. The most competitive solution is not always the supplier with the lowest initial quotation. It is often the supplier that delivers a durable die, stable parts, predictable production, and responsive technical service over the complete project life cycle.

Application Areas in Automotive Systems

Automotive motor housing stamping parts are used in many vehicle systems. They may support traction motors, electric power steering motors, cooling fan motors, window lift motors, seat adjustment motors, wiper motors, braking-related motors, pumps, compressors, and other auxiliary drive units.

Electric and new energy vehicles create additional demand for accurate, lightweight, and thermally effective motor structures. Compact packaging leaves less room for assembly error. Higher power density increases thermal requirements. Large-scale production increases the importance of repeatable tooling and automation. These trends make precision stamped components increasingly relevant to vehicle manufacturers and system suppliers.

Motor housings may also be combined with stamped components used in servo drives, compressors, and other electrically driven equipment. The same core capabilities—material selection, die engineering, precision forming, inspection, and automation—can be adapted to different products while maintaining a common quality management approach.

Design Guidelines for Better Stamped Motor Housings

Use Practical Bend Radii

Sharp internal corners increase the risk of cracking and make die manufacturing more difficult. Practical bend radii should be selected according to the material grade, thickness, grain direction, and forming method. A suitable radius improves material flow and helps extend die life.

Control Hole and Edge Relationships

Holes placed too close to an edge may distort during forming or reduce the strength of the surrounding material. Their position should be reviewed in relation to trimming, bending, drawing, and fastening requirements. If a hole must be positioned near a formed feature, a secondary piercing or calibration operation may provide better accuracy.

Include Functional Forming Features

Ribs, beads, flanges, and embossments can improve stiffness and support assembly without requiring excessive thickness. However, these features should be designed with realistic forming conditions. Excessively deep or narrow features may create thinning, wrinkling, or difficult tool access.

Consider Springback from the Beginning

High-strength materials and aluminum alloys may show significant springback after forming. Engineers should consider springback during die design rather than waiting until the trial stage. Compensation, restriking, controlled forming sequences, and appropriate clamping can help achieve the final target geometry.

Design for Inspection and Assembly

Critical surfaces and locating features should be accessible for measurement. The component should also be easy to orient and handle during assembly. Clear datum schemes, suitable checking points, and consistent interfaces help connect the stamping process with downstream production.

Production Automation and Efficiency

Automation can improve the safety, speed, and repeatability of motor housing production. Automatic feeding systems can deliver sheet material or blanks to the press at a controlled rate. Transfer mechanisms can move formed parts between stations. Sensors can monitor material presence, die position, part ejection, and abnormal conditions.

Automated production reduces manual handling and can limit variation caused by inconsistent placement. It also allows operators to focus on setup, monitoring, inspection, and maintenance rather than repetitive loading and unloading. For high-volume automotive programs, these improvements can increase output and reduce the risk of workplace injuries.

Automation must be designed together with the stamping die. Part geometry, carrier layout, transfer clearance, gripper position, press stroke, and ejection direction all affect whether a system will operate smoothly. The availability of stamping automation expertise enables the manufacturer to consider these interactions during project planning.

Production data can further improve control. Press load monitoring, output records, downtime analysis, inspection results, and maintenance history help identify process trends. Over time, this information can be used to optimize cycle time, reduce unplanned stoppages, schedule die maintenance, and improve overall equipment effectiveness.

Maintenance, Reliability, and Service Life

A stamping die is a precision production asset. Regular maintenance is necessary to preserve its accuracy and protect the quality of automotive motor housing parts. Maintenance activities may include cleaning, lubrication, checking guide components, inspecting punches and cutting edges, verifying fasteners, removing material buildup, and replacing worn inserts or springs.

Production personnel should monitor common warning signs such as increasing burrs, dimensional drift, surface scratches, unusual press noise, inconsistent feeding, and changes in forming force. These signs may indicate wear, misalignment, inadequate lubrication, or material variation. Early action can prevent more serious die damage and reduce the risk of large quantities of defective parts.

Part handling also affects service life. Stamped housings should be protected from impact, contamination, and uncontrolled stacking. Thin flanges and formed edges can be damaged if components are dropped or packed improperly. Suitable packaging and clear identification help preserve product quality between stamping, surface treatment, assembly, and delivery.

Long-term reliability depends on the entire manufacturing chain. A good die cannot compensate for unsuitable material, incorrect press settings, poor storage, or inadequate inspection. For this reason, a complete supplier should provide technical guidance covering tool maintenance, process parameters, quality control, and production support.

Why These Components Matter to Vehicle Manufacturers

Although a motor housing stamping part may appear smaller and less complex than the complete motor, it can influence the reliability of the entire vehicle system. The housing controls the location of internal components, supports fasteners, influences heat flow, and protects electrical elements from the operating environment.

Reliable housings also support efficient vehicle assembly. When holes, flanges, and interfaces are consistent, automated equipment can locate and fasten the component with fewer corrections. Stable part quality reduces line stoppages, rework, and warranty risk. In high-volume vehicle production, even a small improvement in assembly consistency can generate significant operational value.

For electric vehicles and hybrid vehicles, the importance of lightweight and thermally effective structures continues to increase. Motor systems must deliver high performance within restricted spaces and under demanding operating cycles. Precision stamped housings provide a practical platform for integrating strength, protection, cooling, drainage, and mounting functions into a compact part.

Supplier Selection Considerations

Customers should evaluate a stamping supplier according to the full scope of the project. Important questions include whether the supplier can design and build the die internally, whether it has suitable press capacity, whether it can support automation, and whether it has experience with the required material and tolerance level.

Technical staffing is another important consideration. A capable team should include die designers, process engineers, machinists, press operators, quality personnel, and debugging specialists. Clear communication between these roles helps transform a product drawing into a stable production process.

Customers should also review the supplier’s ability to manage documentation. Drawings, material records, trial reports, inspection results, process parameters, maintenance records, and change approvals all contribute to traceability. Strong documentation supports customer audits and makes future troubleshooting more efficient.

Production flexibility can be valuable when customer demand changes. A supplier with several press capacities and automation options may be able to support prototype, pilot, and volume stages without requiring a completely new manufacturing partner. This continuity can reduce transition risk and preserve process knowledge.

Company Capabilities Supporting the Product

Suzhou Shuangqisi Mold Equipment Co., Ltd. is a professional manufacturer integrating the design, manufacturing, and service of stamping dies and hardware parts. The company operates in Suzhou, China, and has developed experience in mold production, stamping, and related automation solutions.

The company has approximately 60 technical staff and serves customers in sectors including servo drives, compressors, and new energy vehicles. Its customer base includes Anter Group, Ousheng Electric, Dongbei Group, and Huichuan Technology, according to the supplied company information. These application areas require accurate tooling, stable production, and reliable technical coordination.

Its production resources include imported wire cutting machines, CNC machining centers, more than ten grinding machines of various sizes, 25 punch presses from 80 tons to 400 tons, and other precision equipment. These resources support die construction, tool correction, stamping production, and the development of customer-specific manufacturing solutions.

The company also invested in and established Suzhou Keshuang Intelligent Technology Co., Ltd. in 2016 to focus mainly on stamping automation equipment. This related capability allows the organization to provide turnkey solutions covering stamping molds and automation. Depending on project requirements, it can also consider investment in production equipment and customized arrangements designed to deliver practical cost and quality performance.

For automotive motor housing stamping parts, the combination of mold expertise, press capacity, experienced operators, debugging capability, and automation knowledge can support the complete process from initial design review to production delivery. This integrated structure is intended to help customers control quality, cost, schedule, and manufacturing efficiency.

Frequently Asked Questions

What materials are commonly used for automotive motor housing stamping parts?

Common materials include high-strength steel, galvanized steel, stainless steel, and aluminum alloy. The correct selection depends on structural load, weight targets, thermal requirements, corrosion exposure, forming behavior, joining method, and customer specifications.

Why is stamping suitable for motor housing production?

Stamping can produce repeatable three-dimensional components efficiently from sheet material. It supports integrated ribs, holes, flanges, drainage features, and mounting interfaces while offering competitive production costs and good material utilization for medium- and high-volume applications.

Can stamped motor housings be used for electric vehicles?

Yes. Stamped housings are suitable for many electric vehicle traction and auxiliary motor applications. They can be designed for lightweight construction, heat dissipation, vibration resistance, corrosion protection, and compact assembly interfaces.

What press capacity is needed for a motor housing?

The required capacity depends on material type, thickness, blank size, forming depth, die design, and the number of operations performed. A supplier with presses ranging from 80 tons to 400 tons can match different components to suitable equipment after reviewing the technical requirements.

How does a stamping die affect product quality?

The die controls the position, shape, forming sequence, and repeatability of the part. Accurate die machining, suitable clearances, controlled material flow, proper guiding, and effective trial debugging are all necessary to achieve stable dimensions and surface quality.

What quality tests may be applied to these components?

Typical controls include material verification, dimensional inspection, visual and surface inspection, burr evaluation, flatness checks, assembly verification, pressure resistance testing, and corrosion resistance testing. The exact test plan depends on the component’s function and the customer’s standard.

Can one supplier provide both dies and automation?

An integrated stamping supplier may provide die design, die manufacturing, stamping production, and automation equipment through coordinated internal or affiliated capabilities. This can simplify project communication and improve compatibility between the tool, press, feeding system, and transfer equipment.

How can customers improve the manufacturability of a housing design?

Customers should use practical bend radii, provide sufficient material around holes, avoid unnecessarily deep forming features, define realistic tolerances, identify functional datums, and review the design with the stamping engineer before die construction begins. Early cooperation usually reduces modifications and development time.

What makes a supplier competitive beyond price?

Important factors include die accuracy, engineering experience, press capacity, material knowledge, debugging skill, inspection discipline, automation capability, response speed, documentation, delivery reliability, and long-term technical support. A stable process can reduce the total cost associated with rework, downtime, and quality failures.

Conclusion

Automotive motor housing stamping parts are vital to the protection, alignment, cooling, and structural integrity of modern vehicle motors. Their performance depends on accurate material selection, careful product design, well-engineered stamping dies, appropriate press equipment, disciplined quality control, and reliable production support.

Precision stamping provides important advantages over less integrated manufacturing methods. It can deliver consistent dimensions, efficient material usage, high production speed, lightweight structures, and flexible functional features. When combined with CNC machining, wire cutting, grinding, experienced die debugging, and automated production equipment, it becomes a powerful solution for automotive component manufacturing.

The manufacturing capabilities described for Suzhou Shuangqisi Mold Equipment Co., Ltd. support a complete approach to stamping projects. Its technical staff, precision equipment, press range, die-making experience, and related automation capabilities can help customers develop and produce motor housing components for automotive and new energy applications.

For vehicle manufacturers and motor suppliers, the best results come from treating the housing as an engineered system component rather than a simple sheet metal cover. Early design collaboration, stable tooling, controlled production, and documented inspection can create parts that resist vibration, impact, heat, moisture, and corrosion while also supporting efficient vehicle assembly. Through this combination of precision manufacturing and integrated technical service, automotive motor housing stamping parts can contribute significantly to safer, lighter, more durable, and more efficient vehicles.
